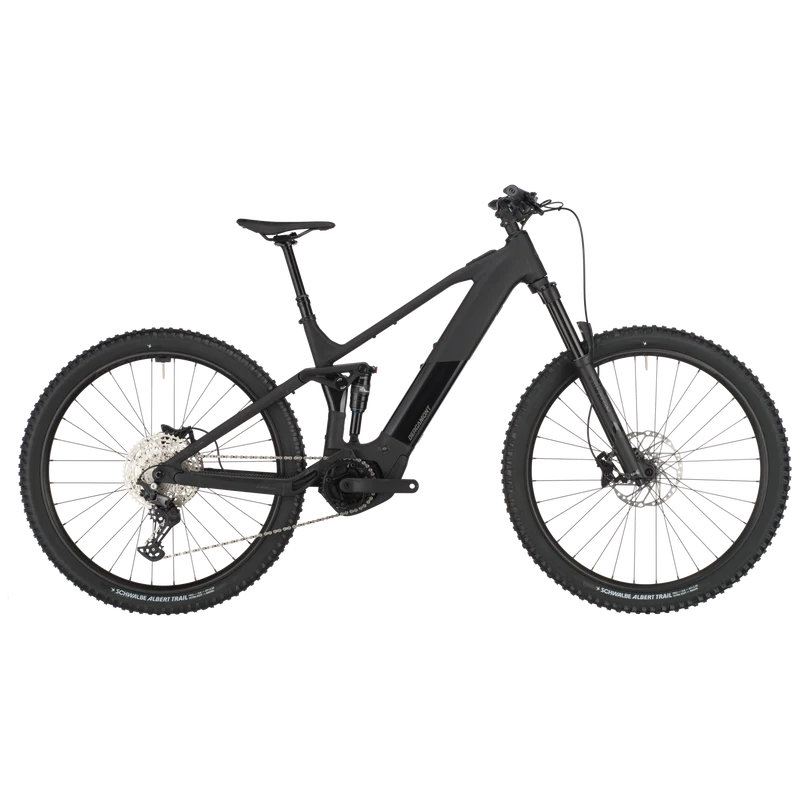

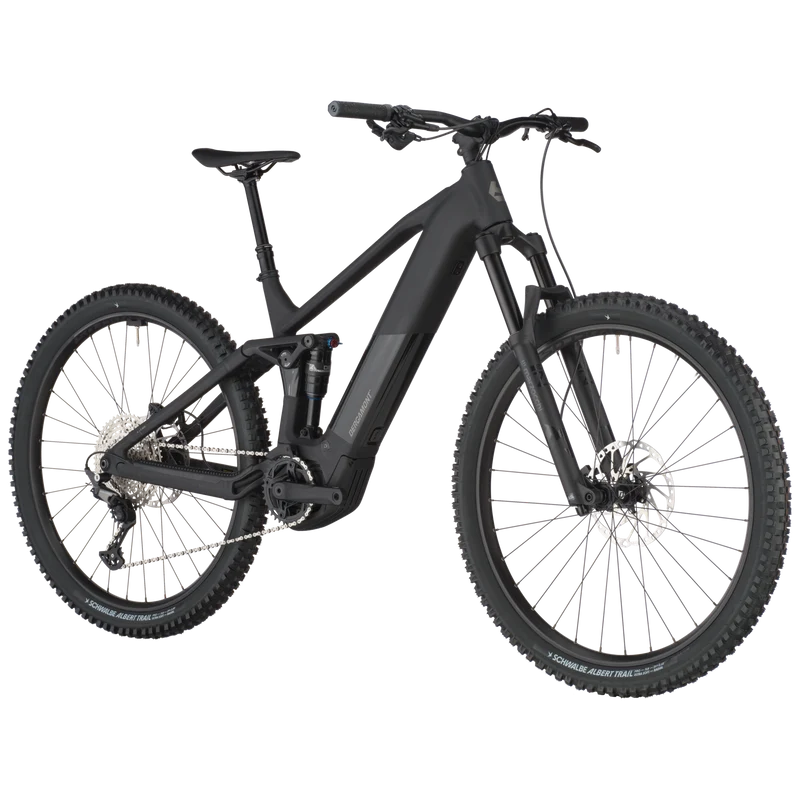

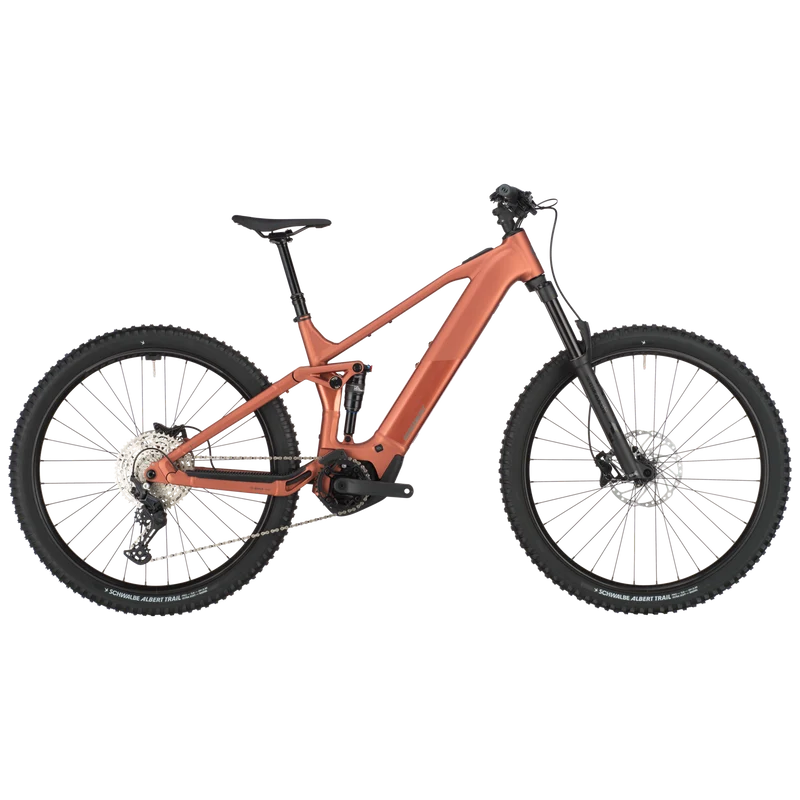

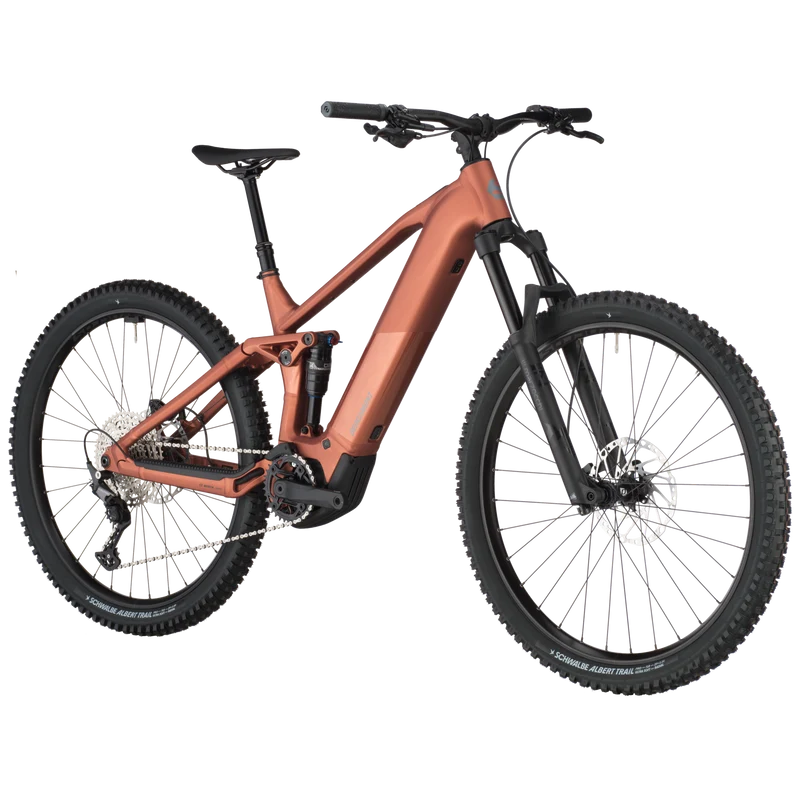

This versatile e-mountain bike is fun to ride, based on a lightweight dual suspension frame with 150 mm of travel and 29" wheels. The plush suspension and large wheel diameters provide a smooth and comfortable ride, even when the terrain gets rough, and give you perfect control over your ride at any moment.
The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes and to push your boundaries. A 12-speed drivetrain will ensure you remain in the optimal pedaling cadence on every leg of your trip. For clean optics and a sleek look, the E-Revox FS also features full cable integration.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
Specs
Frame 29", ultra lite AL-6061 tubing, PowerTube battery, 150 mm travel
Fork Marzocchi Bomber Z2 Air, eMTB+, 150 mm, 15x110 mm axle
Rear Shock X-Fusion O2 Pro RLX, Trunnion, compression-, rebound. Adj., 150 mm
Drive Unit Bosch Smart System, Performance Line CX, 250 W, 36 V, max. 25 km/h
Battery Bosch PowerTube, 36 V Li Ion, 800 Wh
Display Bosch Mini Remote with TT System Controller
Charger Bosch Standard Charger, 4A
Rear Derailleur Shimano Deore, RD-M6100, Shadow Plus
ShiftersShimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Crankset FSA CK-745, 165 mm, 34t
BB-Set Bosch, Isis
Chain KMC e12S
Cassette Shimano Deore, CS-M6100, 10-51t
Brake Levers Shimano BL-MT4100, hydraulic disc brake
Brakes Shimano BR-MT420, hydraulic disc brake, 4-piston
Rotor Shimano SM-RT64, 203 mm
HandlebarSyncros Hixon 2.0, riserbar, rise: 12 mm, width: 760 mm
H'stem Syncros FL2.0
SeatpostSyncros Duncan, dropper post
Seat Syncros Tofino 2.5
Headset Acros, A-Headset, semi-integrated, tapered, blocklock, with integrated cable routing
Front Hub Formula CL-811, 15x110 mm axle
Rear Hub Formula CL-148M, centerlock, disc, 12x148 mm axle
Spokes Sapim Race, black
Rims Syncros MD30, disc, eyelets, tubeless ready
Front Tire Schwalbe Albert Trail Pro, TLR, Soft, 63-622Tube: Schwalbe SV19
Rear Tire Schwalbe Albert Trail Pro, TLR, Soft, 63-622Tube: Schwalbe SV19
Pedalsnone
Approx weight in KG25,6
Grips Syncros MTB Comfort, lock-on
Max. System Weight130,0 kg. The overall weight includes the bike, the rider, the equipment and possible additional luggage.
