Bosch Purion 200 Smart System

Bosch Purion 200 Smart System

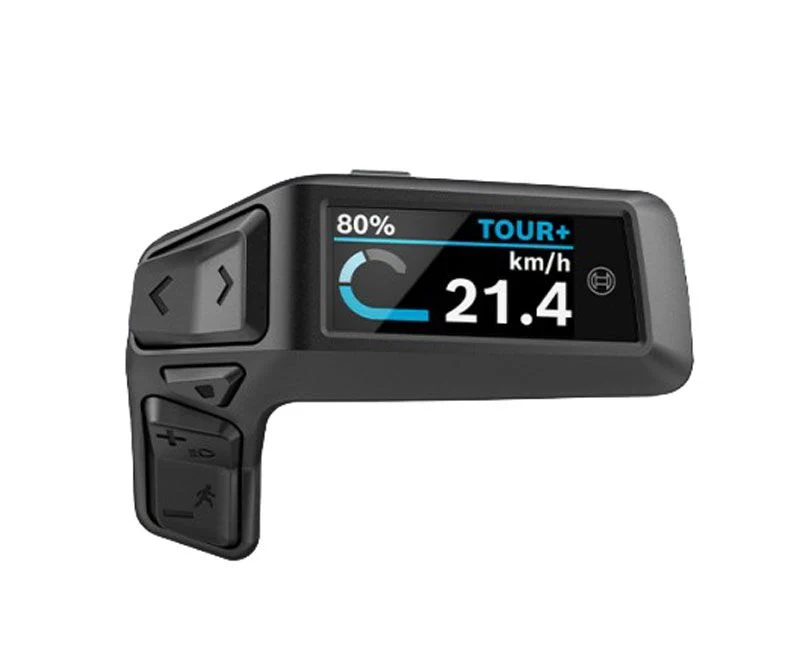

Control unit with compact color display and fully networked in a smart system: that's Bosch Purion 200 for 22.2 mm standard handlebars. The all-in-one solution tidies up the handlebars, sits right next to your thumb and offers a razor-sharp display of the driving data as well as simple, ergonomic control of all eBike functions. Combine Purion 200 with an additional display - for even more comfort.

Important product information: To upgrade to the Purion 200, configuration with the DiagnosticTool from a specialist retailer is mandatory!

features

• All-in-one: Display and control unit for eBike control in one device
• Ease of use: Developed with the ergonomics experts at SQlab
• 1.6-inch color display: Ideal readability thanks to optimal display resolution
• "L-shape" for best readability and optimal, ergonomic accessibility of the keys
• Flexibility: Expandable with an additional display or the SmartphoneGrip
• Always up to date: New functions and updates in the future - Flow app updates always ensure the full range of functions and the software is up to date for all Bosch eBike components
• Long-lasting and replaceable Li-Ion battery with 75 mAh, which is charged via the eBike battery
• 1.6 inch TFT display (320 x 160 pixels)
• Diagnostic interface (type: USB-C) for diagnosis or as an alternative charging option for the integrated battery of the Purion 200
• The interface is not suitable for charging the smartphone!
• system plug for connecting the eBike system
• Size (L x W x H): 86 x 65 x 53mm
• Handlebar diameter: 22.2mm
• Compatibility: Bosch e-bikes with Smart System
• Features - Bosch Purion 200 (BRC3800) | 22.2mm

scope of delivery

• 1 x Bosch Purion 200 (BRC3800) The smart system
• 1 x spacer rubber for clamp and battery
• 1 x captive clamp screw
• 1 x operating and assembly instructions
