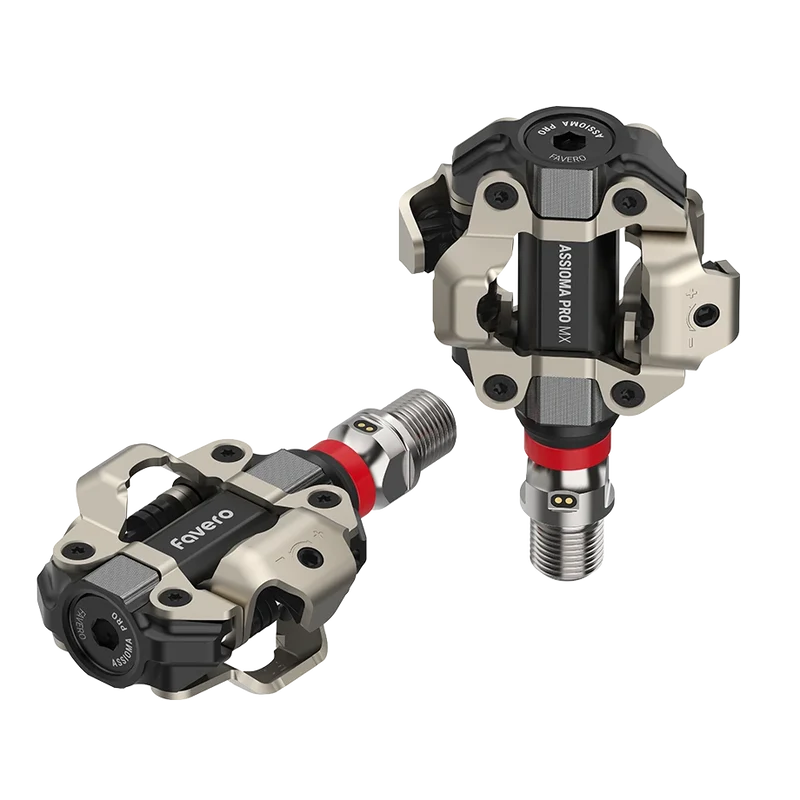

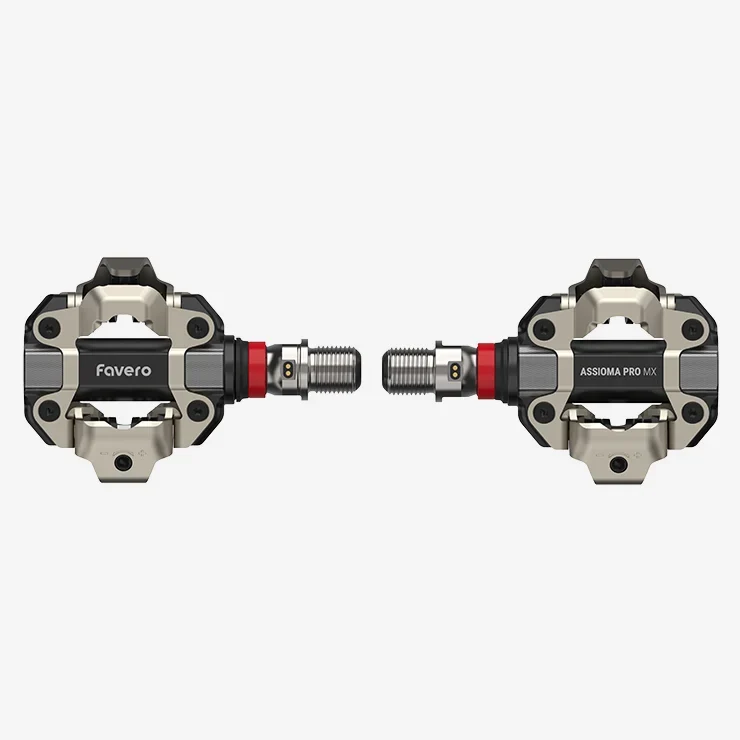

Favero Assioma PRO MX-2

SPD® power meter for MTB and gravel with power sensor on both sides.
The best choice to take full advantage of the real dual-sided measurement.

Bike type

MTB XC, CX, gravel

Technical sheet Power meter

• Left pedal with power sensor
• Right pedal with power sensor

Clip-in system

100% compatible with Shimano® SPD®

Compatible cleats

• Provided cleats (art. 773-00-62)
• Shimano® SM-SH51, SM-SH56 or CL-MT001

Power measurement

Total power with L/R Balance insights

Data provided

• Power
• Cadence
• L/R Balance
• PCO
• Power Phase (PP)
• Rider Position (RP)
• Pedal Smoothness (PS)
• Torque Effectiveness (TE)

Waterproofness

IP67

Temperature compensation

Yes – ATC (Active Temperature Compensation)

Pedal body

Ultralight 6061-T6 aluminum pedal body.
Clipless system in chromium molybdenum alloy with a surface hardness up to 800 HV

Modular design

Interchangeable pedal bodies (MTB/road)

Oval-chainrings compatible

Yes

Warranty

2 yrs

Made in

Italy

Dimensions Weight per power pedal

199 g

Stack height

11.2 mm

Battery Battery type

Lithium-ion, rechargeable

Battery duration

Up to 160 hours per charge

Communication and sensors Cadence sensor

Included, built-in

Gyroscope

Included, built-in

Radio communication

ANT+, Bluetooth (up to 3 BLE connections at the same time)

Visible data/channel

Via Bluetooth, ANT+/Favero Assioma app

• Power
• Cadence
• L/R Balance

Via ANT+/Favero Assioma app

• PCO
• Power Phase (PP)
• Rider Position (No Favero Assioma app)
• Pedal Smoothness (PS)
• Torque Effectiveness (TE)

Power calculation system

IAV (Instantaneous Angular Velocity-based)

Cycling Dynamics

Available (PCO, PP, RP)

Accuracy

± 1%
