Fox Factory 2022 32 K FLOAT TC 700c FS FIT4 3Pos-Adj 1.5 T Orange/Clear Logo

Fox Factory 2022 32 K FLOAT TC 700c FS FIT4 3Pos-Adj 1.5 T Orange/Clear Logo

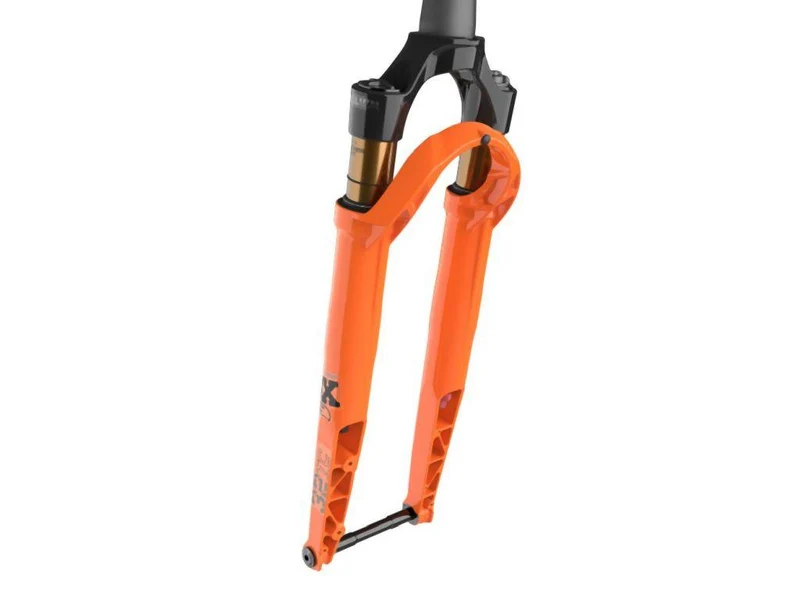

The lightest suspension fork FOX has ever built, the all-new 32 Taper-Cast Gravel Fork, is here. It's time to ditch the flex stem and undamped leaf springs; the bike's suspension vastly improves the riding experience, increases control, takes the edge off extended gravel rides, and dramatically expands the terrain you can cover.

Specially developed - Developed in collaboration with emerging gravel bike designs, the 32 Taper-Cast features a sleek drop crown profile and new knob shapes that dramatically improve downtube clearance, allowing it to fit all frame sizes and types. A sleek, inverted arch design further improves fit, reduces frontal area for better aerodynamics, and provides stiffness through the arch matrix design.

Lighter The lightest fork FOX has ever designed and manufactured weighs an incredible 1226g, while retaining features like integrated fender mounts and compatibility with 160mm and 180mm flat mounts. The fork also features Fox's lightweight Kabolt thru-axle and a longer steerer tube to provide more options for mounting on gravel frames.

Gravel Tuned Equipped with FOX's proven FIT4 damper, this lightweight package offers all the adjustability of a mountain fork, including up to 50 mm of adjustable travel. The lightweight, short-travel optimized air spring requires fewer or no spacers, and the design utilizes air/oil bypass channels in the lower section.

Kashima-coated 7000 series aluminum standpipes

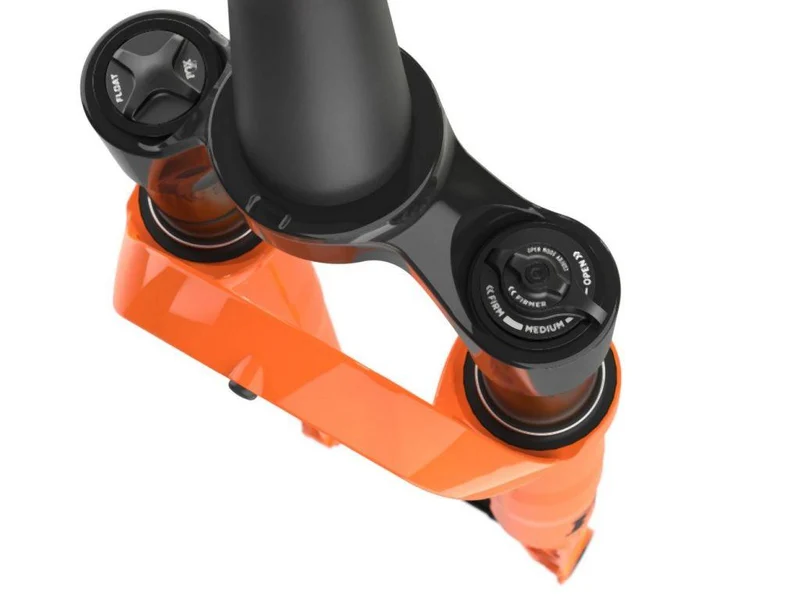

• FIT 4 damper with three settings - open, medium and hard

• Wheel: 700c (not 650b compatible)

• Travel: selectable; 40mm or 50mm

• Chassis: Lightweight 32mm taper-cast chassis

• Damper: FIT4 3-position lever w/adj

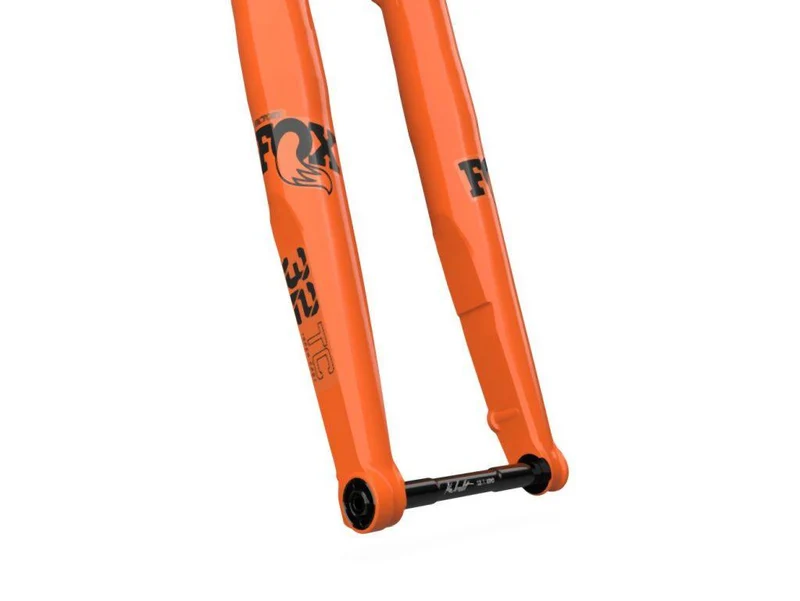

• Axle/Spacing: Lightweight 12x100mm Kabolt thru axle

• Air spring: FLOAT EVOL (especially for short spring travel)

• Top tube finish: Kashima

• Fork tube: 1.5" tapered

• Axle-to-apex: 435mm (40m travel)

• Maximum rider/system weight: 121 kg (the system weight includes the weight of the bike,
• Driver, equipment, accessories and luggage)
• Brake/Compatibility: 160mm Flat Mount (maximum rotor size - 180mm)

• Offset: either 45 or 50

• Maximum tire size: 700x50mm (without mudguard); 700x45mm (with mudguard)

• Weight: 1.226g.

• Color: choose; Shiny Black, or Shiny Orange
