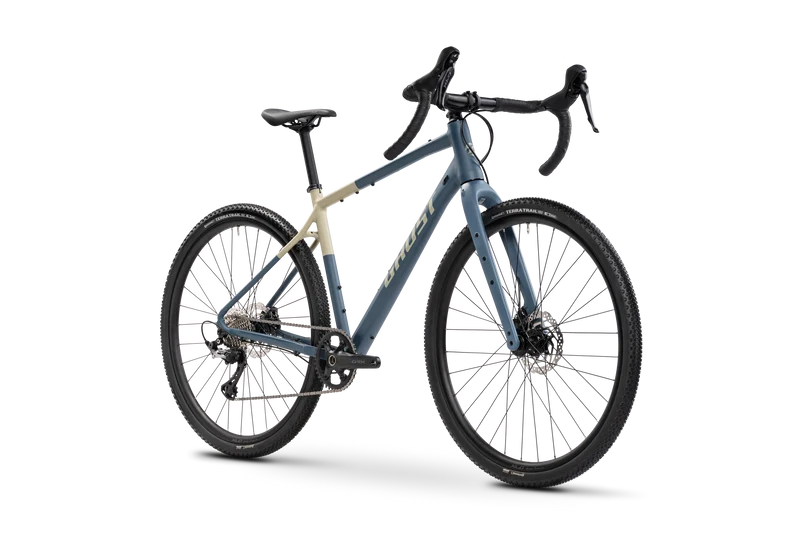

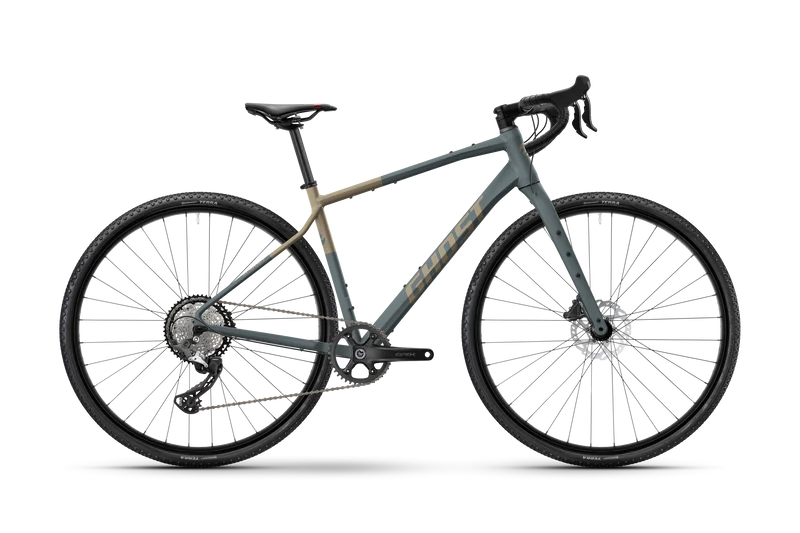

GHOST Asket

Our entry-level gravel bike: with its sturdy aluminium frame, this is the perfect starting point for anyone looking to venture onto gravel roads and forest trails. If you have even bigger ambitions, you will be impressed with the bikepacking mounts, which make attaching panniers a breeze. And if you want to benefit from the power transfer and comfort of a gravel bike during everyday riding, mudguards and stands can be easily mounted in just a few steps.

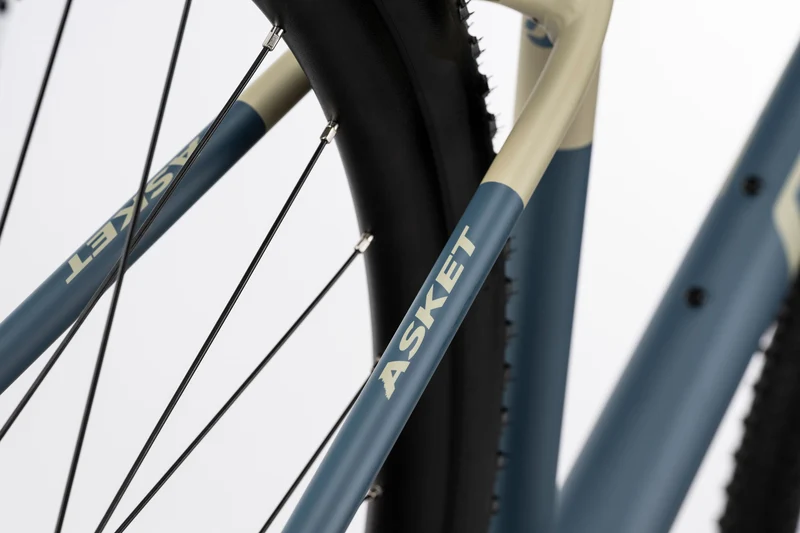

Alloy Frame

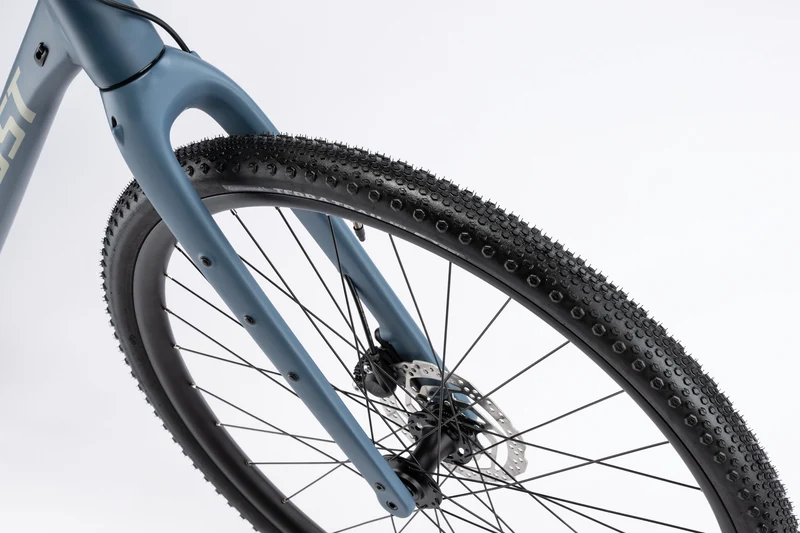

Carbon Fork

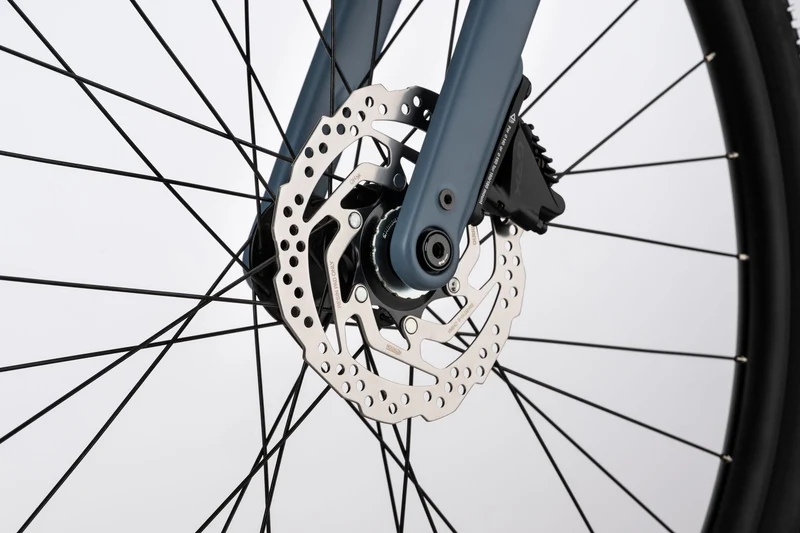

Shimano GRX BR-RX400 Hydraulic Brakes

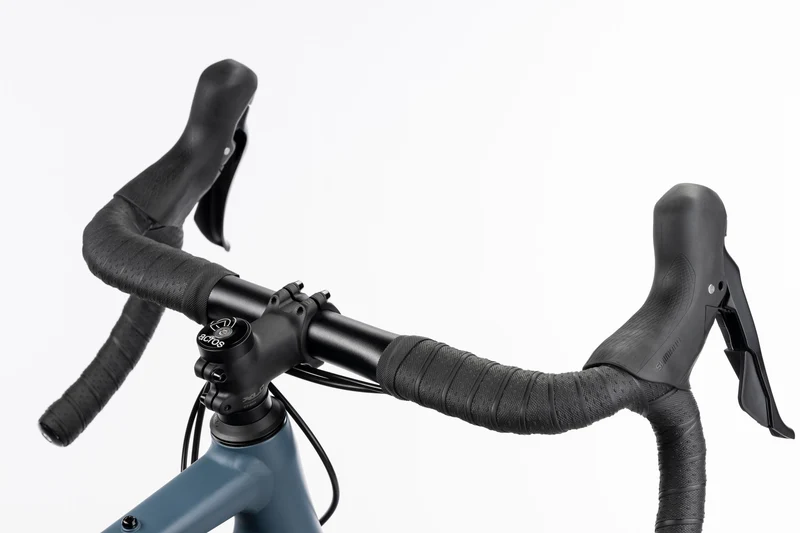

Shimano GRX ST-RX600 Shift Brake Levers

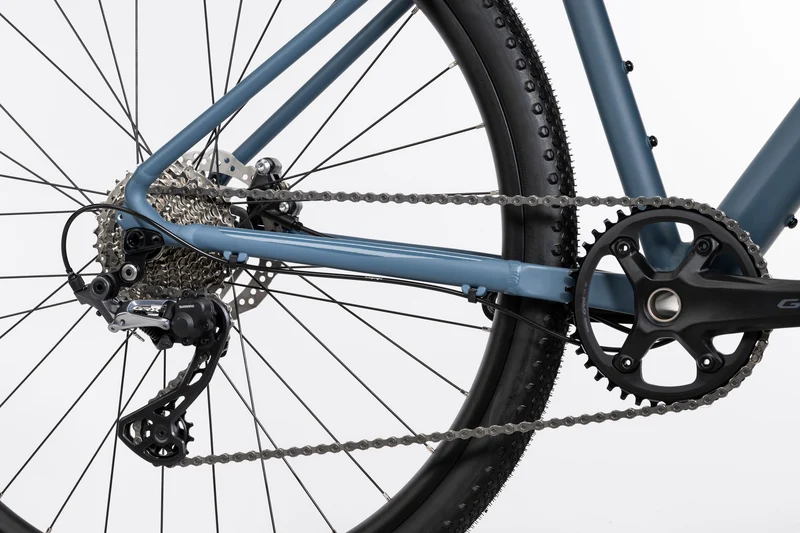

Shimano GRX RD-RX810 Rear Derailleur

Bike Geometry

• Bottom bracket drop [mm]:
  • · 66.5 mm
  • · 71.5 mm
  • · 61.5 mm
• Chain stay length [mm]: 440 mm
• Head tube angle:
  • · 70.4 degrees
  • · 70.1 degrees
  • · 69.8 degrees
  • · 70.7 degrees
• Head tube length [mm]:
  • · 190 mm
  • · 160 mm
  • · 130 mm
  • · 220 mm
• Reach [mm]:
  • · 427 mm
  • · 407 mm
  • · 392 mm
  • · 444 mm
• Stack [mm]:
  • · 641 mm
  • · 612 mm
  • · 587 mm
  • · 666 mm
• Stand over height [mm]:
  • · 780 mm
  • · 750 mm
  • · 710 mm
  • · 820 mm
• Seat tube angle:
  • · 73.6 degrees
  • · 73.7 degrees
• Seat tube length [mm]:
  • · 525 mm
  • · 485 mm
  • · 450 mm
  • · 560 mm
• Top tube length [mm]:
  • · 615 mm
  • · 586 mm
  • · 563 mm
  • · 639 mm
• Wheelbase [mm]:
  • · 1126 mm
  • · 1098 mm
  • · 1076 mm
  • · 1150 mm

Brake system

• Brake Front Description: Shimano, Hydraulic Disc brake, GRX BR-RX400, 2 pistons, resin pad, 160 mm
• Brake Front Mount: Flat Mount
• Brake Rear Description: Shimano, Hydraulic Disc brake, GRX BR-RX400, 2 pistons, resin pad, 160 mm
• Brake Rear Mount: Flat Mount
• Brake Lever Description: Shimano, GRX ST-RX600 Shift-Brake-Lever
• Brake Rotor Description: Shimano, SM-RT64 160 mm, Centerlock

Drivetrain

• Bottom Bracket Description: Shimano, BSA, Tiagra BB-RS501 68/70 mm
• Cassette Description: Shimano, GRX CS-HG700-11, HG
• Cassette Teeth: 11-34T
• Chain Description: Shimano, GRX CN-HG601 11s, SIL-TECH
• Crank Arm length:
  • · 170
  • · 175
  • · 172.5
• Crankset Description: Shimano, GRX FC-RX600-1, 2-Piece Crankset
• Crankset Teeth: 40T
• Crankset Type: single
• Derailleur Hanger Description: Ghost, FRHG0065 Hanger Set
• Derailleur Rear Description: Shimano, GRX RD-RX810 11s, Shadow+
• Gear Description: Shimano, Derailleur
• Number Of Gears: 11
• Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
• Pedal Inclusive: Yes
• Shifter Right Description: Shimano, Shift-brake lever, GRX ST-RX600-R, Dual Control Lever

Frame and more

• Max loadable weight (KG): 120 kg
• Front Fork Description: Ghost, Carbon
• Front Fork Type: Non Suspension
• Frame Description: HIGH, Aluminium, Uni
• Type kickstand mount: KSA40

Handlebar and Saddle

• Handgrip Description: XLC, Elastomer Tape Gray, 200x3 cm w/VLP-137
• Handlebar Description: XLC, Drop bar, Gravel Bar JD-RA128A, Dia. 31.8 mm
• Handlebar Diameter: 31.8 mm
• Headset Description: Acros, Semi-integrated, ZS44/ZS56
• Saddle Description: XLC, Sport SA-S10 143 mm
• Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 27.2 mm, L: 350 mm
• Stem Description: XLC, ST-M34, Dia. 31.8 mm, L: 60 mm, +/-7°, A-Head
• Stem Length: 60 mm

Wheels and wheel components

• Hub Front Description: XLC, HF-G12 12x100 mm, 32H, Centerlock
• Hub Rear Description: XLC, HR-G12 12x142 mm, 32H, Centerlock, HG
• Rim Description: XLC, WR-G29 SL Disc 25/622 32H 6,5 mm Valve
• Rim Rear Description: XLC, WR-G29 SL Disc 25/622 32H 6,5 mm Valve
• Spoke Description: DT Swiss, ELEMENTAL 2.0
• Tyre Description: Continental, Terra Adventure Trail Grip, 45-622
• Tyre Rear Description: Continental, Terra Adventure Trail Grip
• Wheelsize Description: 28, 28
