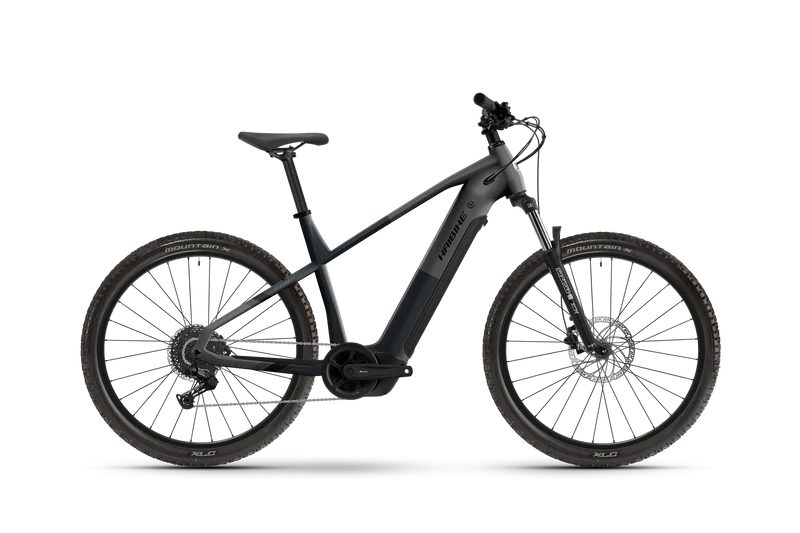

HAIBIKE AllTrack 4

Fun off-road, fun on-road. The HAIBIKE ALLTRACK 4 is the ideal introduction to the world of e-hardtails. Its strong component mix makes sure of that: the powerful Bosch Performance Line PX motor supports you across all terrains. Reliable Shimano shifting and strong disc brakes keep your ride safe and smooth. The 600Wh battery gives you endurance for tours that go well beyond your usual routes. Versatile: the wide XLC knobbly tyres roll smoothly on gravel and tarmac alike – for maximum riding enjoyment on any terrain.

Alloy Frame
Suntour XCM34 120mm Fork
Bosch Performance Line PX
600Wh Powertube Battery
Shimano CUES 9 Speed Gearing

Bike Geometry

• Bottom bracket drop [mm]:
  • · 60 mm
  • · 65 mm
• Chain stay length [mm]:
  • · 465 mm
  • · 475 mm
• Fork total length [mm]: 44 mm
• Head tube angle:
  • · 68 degrees
  • · 67 degrees
• Head tube length [mm]:
  • · 140 mm
  • · 160 mm
  • · 150 mm
• Reach [mm]:
  • · 422 mm
  • · 432 mm
  • · 472 mm
  • · 452 mm
• Stack [mm]:
  • · 656 mm
  • · 674 mm
  • · 692 mm
  • · 683 mm
• Stand over height [mm]:
  • · 760 mm
  • · 790 mm
• Seat tube angle: 74 degrees
• Seat tube length [mm]:
  • · 400 mm
  • · 450 mm
  • · 550 mm
  • · 500 mm
• Top tube length [mm]:
  • · 610 mm
  • · 625 mm
  • · 670 mm
  • · 648 mm
• Wheelbase [mm]:
  • · 1171 mm
  • · 1216 mm
  • · 1264 mm
  • · 1240 mm

Brake system

• Brake Front Description: Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
• Brake Front Mount: Post Mount
• Brake Rear Description: Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
• Brake Rear Mount: Post Mount
• Brake Lever Description: Tektro, HD-M280-BL
• Brake Rotor Description: Tektro, TR180-53 180 mm, 6 bolt Disc

Drivetrain

• Cassette Description: Shimano, CUES CS-LG300-9, HG
• Cassette Teeth: 11-46T
• Chain Description: KMC, Chain, eGlide with EPT Coating 9-11s
• Crank Arm length: 170
• Crankset Description: XLC, CR-E18 Crankset + CR-E15 Chainring Bosch BDU38
• Crankset Teeth: 38T
• Crankset Type: single
• Derailleur Hanger Description: Glory Wheel, UDH
• Derailleur Rear Description: Shimano, CUES RD-U4000 9s, Shadow
• Gear Description: Shimano, Derailleur, CUES
• Number Of Gears: 9
• Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
• Pedal Inclusive: Yes
• Shifter Right Description: Shimano, Triggershift, CUES SL-U4010-9R, Rapidfire+

E-bike components

• Battery Description: Bosch, InTube 600Wh
• Battery Capacity: 600 Wh
• Battery Location: Powertube
• Battery Removeable: Yes
• Charger Description: Bosch, Charger 2A 220-240V
• Display Description: Bosch, Led Remote, LED Remote
• Motor Description: Bosch, Performance Line PX
• Motor Torque [nm]: 85 Nm
• Motor Location: Center

Frame and more

• Framesize:
  • · 40 cm
  • · 45 cm
  • · 55 cm
  • · 50 cm
• Framesize Convection:
  • · S
  • · M
  • · XL
  • · L
• Max loadable weight (KG): 150 kg
• Front Fork Description: Suntour, XCM34-Boost NLO 15AH4-110 120 mm
• Front Fork Type: Suspension
• Frame Description: High, Aluminium, Uni
• Suspension Type: Hardtail
• Travel Front: 120 mm

Handlebar and Saddle

• Handgrip Description: XLC, MTB Grip Set VLG-1751D2
• Handlebar Description: XLC, Riser Bar, HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
• Handlebar Diameter: 31.8 mm
• Handlebar Material: Aluminium
• Handlebar Rise: 20
• Handlebar Width: 780 mm
• Headset Description: Feimin, Semi-integrated, FP-H856U ZS44 + ACROS BlockLock ZS56
• Saddle Description: XLC, SA-S10 143 mm Sport
• Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 34.9 mm, L: 300 mm, 300 mm
• Seatpost Material: Aluminium
• Stem Description: XLC, ST-M34, Dia. 31.8 mm, L: 50 mm, +/-7°, A-Head
• Stem Length: 50 mm

Lighting

• Brake Light: No

Wheels and wheel components

• Hub Front Description: XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
• Hub Rear Description: XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
• Rim Description: XLC, WR-M37 Disc 30/584 32H 6,5 mm Valve
• Rim Rear Description: XLC, WR-M37 Disc 30/584 32H 6,5 mm Valve
• Spoke Description: Sapim, Leader Dia. 2.0 mm
• Tyre Description: XLC, VT-M30 Cirrus, 66-584
• Tyre Rear Description: XLC, VT-M30 Cirrus
• Wheelsize Description:
