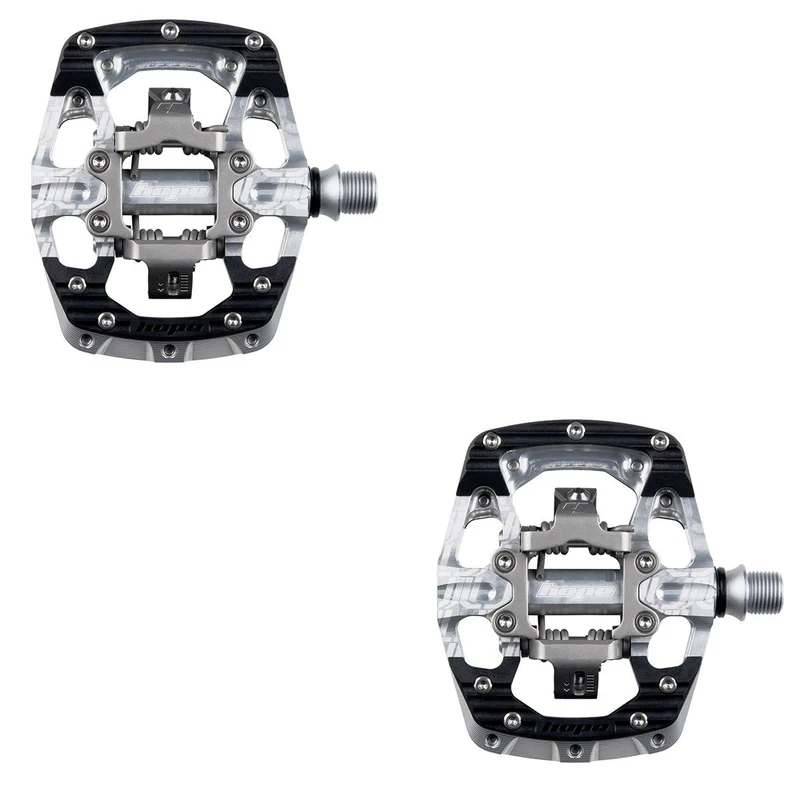

HOPE Union GC Pedals – Pair

HOPE Union GC Pedals - Pair

Beautiful CNC-milled pedals from the milling specialists in Barnoldswick.
Hope offers a suitable pedal for all ambitious enduro and downhill riders. The pedal body, machined from a solid block of steel, rotates around a robust axle made of high-strength Cr-Mo steel and features a large contact surface for efficient power transfer and secure footing. Seven adjustable pins on each side further enhance grip, even in the most adverse conditions. The platform size can be customized to your shoe using interchangeable plates.

The click mechanism and stainless steel cleats are resistant to external influences and will accompany you on your rides for many years. The bearings, adopted from the F20 pedal, are effectively protected from the elements by special seals. Water and dirt, which can lead to premature bearing wear, have no chance of getting inside! Three deep groove ball bearings and a self-lubricating plain bearing ensure smooth and effortless operation.

Two cleat options are available: You can choose between 4° float / 12° release angle or 5° float / 13° release angle. Both cleats offer 2 mm of lateral play to ensure your foot is always optimally positioned.

To ensure the pedals visually match your bike, they are available in 6 different anodized colors. The logos are laser-engraved, as is typical for Hope.

Technical data:

• Area of ​​application: Enduro, Downhill

• Pedal axle material: Cr-Mo steel

• Pedal body material: Aluminum, CNC milled

• Material of click mechanism: stainless steel

• Pins: seven per page

• Storage: Sealed industrial/plain bearing combination

• Freedom of movement: 4° or 5° (depending on the cleat)

• Trigger angle: 12° or 13° (depending on the cleat)

• Trigger strength: adjustable

• Q-factor/axis length: 55 mm

• Sole compatibility: Shimano SPD (MTB)

• Pedal plate compatibility: Hope MTB Cleat

• Weight limit: -

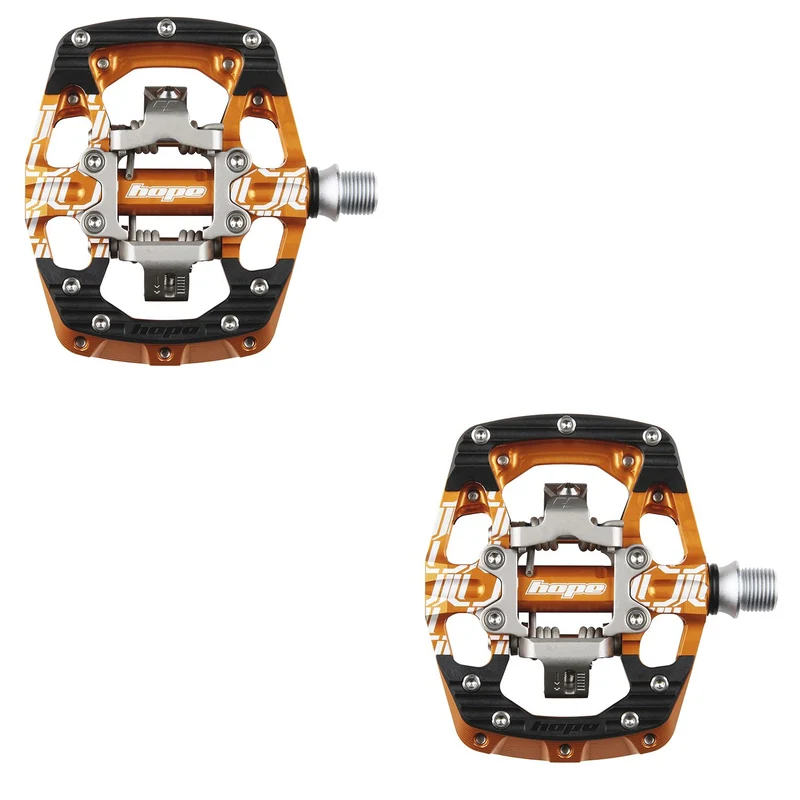

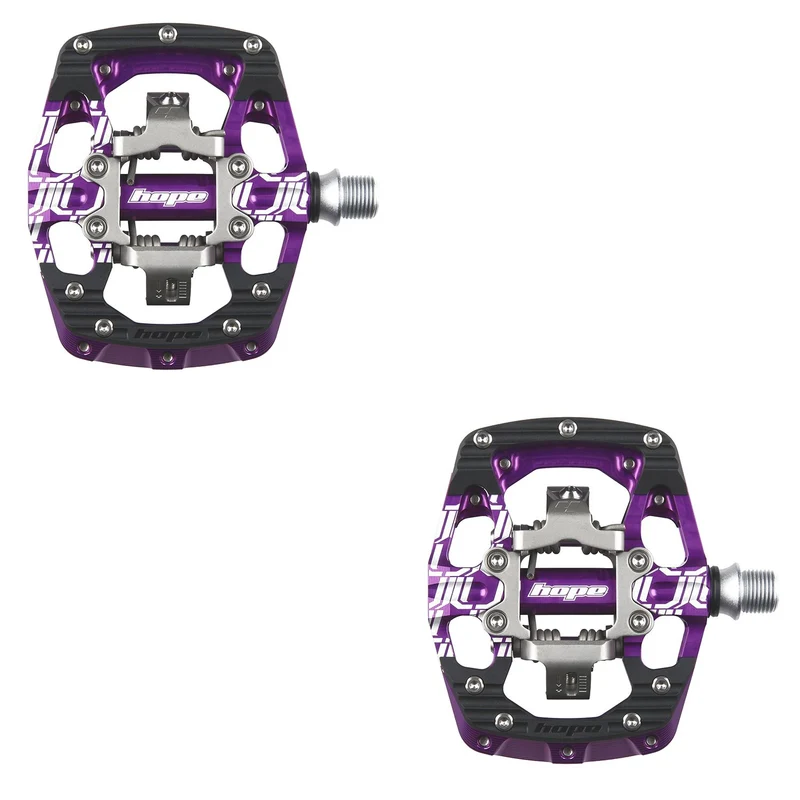

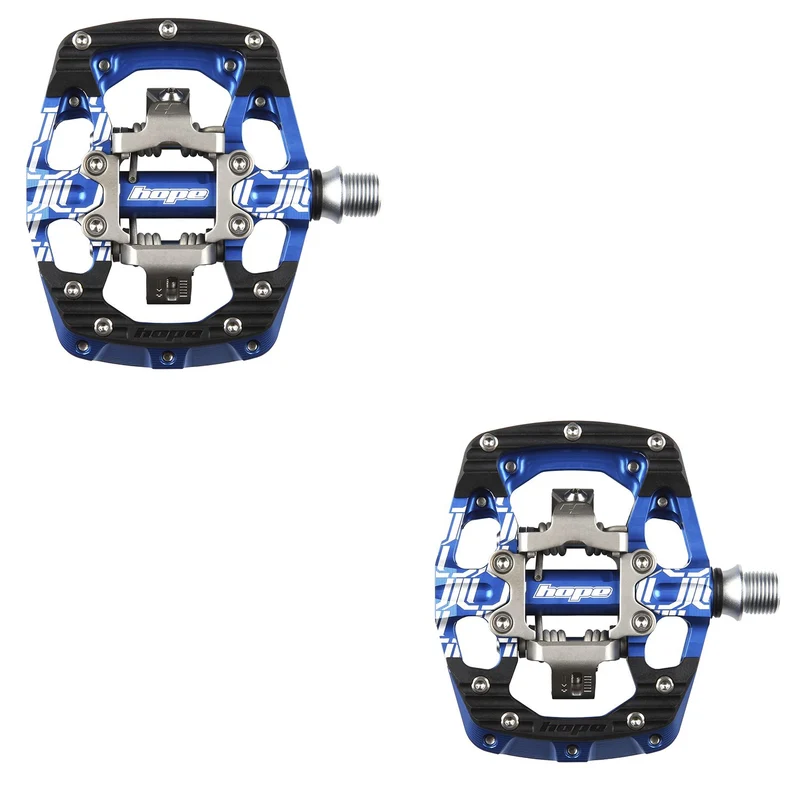

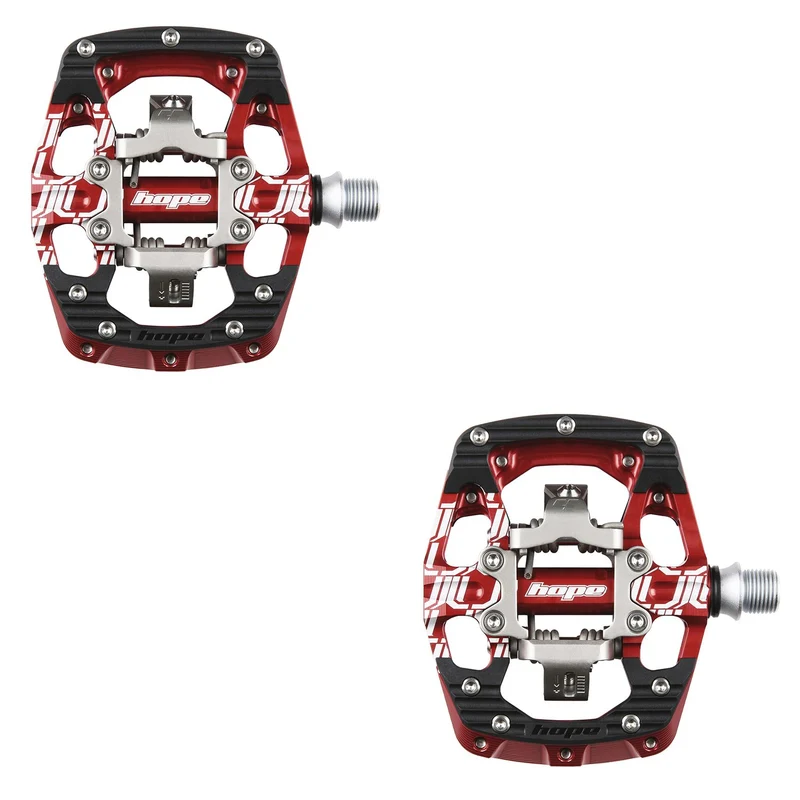

• Colors: black, silver, red, purple, orange, blue

Weight according to manufacturer: 498g

Scope of delivery:

• 1x pair of HOPE pedals Union Clip Pedal GC | Gravity clip

• 1 pair of cleats, 4° freedom of movement / 12° release angle

• 1 pair of cleats, 5° freedom of movement / 13° release angle
