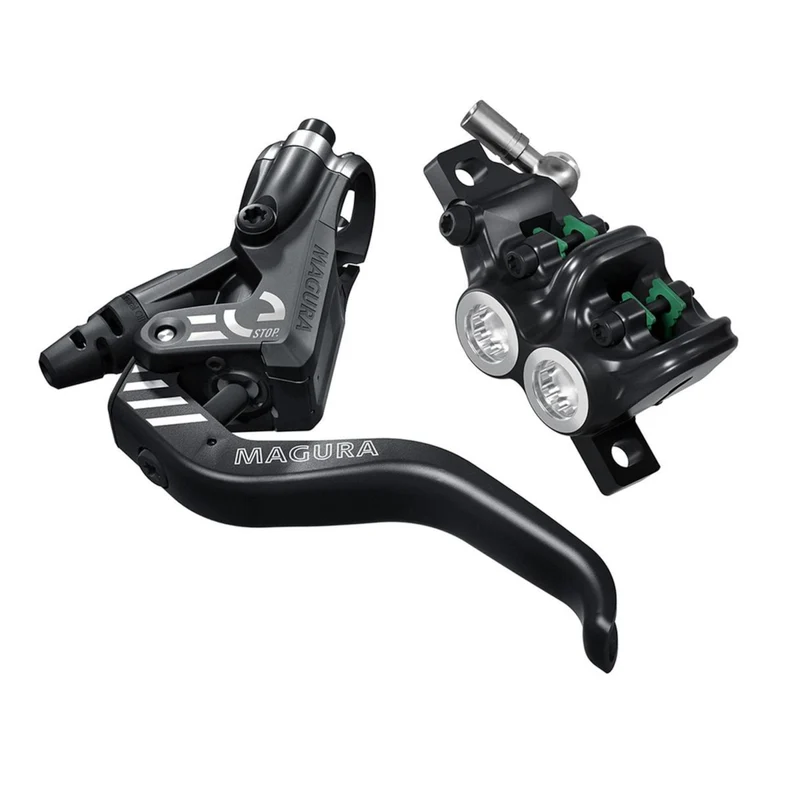

Magura MT5 eSTOP, 2-finger aluminum lightweight lever

Magura MT5 eSTOP, 2-finger aluminum lightweight lever

E-Bike Optimized!
The hydraulic MT5 eSTOP disc brake is MAGURA's current top model for demanding e-bike use. With powerful 4-piston brake calipers, it offers safe performance at high speeds even on heavy cargo e-bikes and e-MTBs.
The eSTOP system is based on the properties of the proven MT series and, when combined with the MAGURA sports brake pads optimized for e-bikes and the optional MDR-C or MDR-P brake discs, offers even greater braking power and stability.

Details:

E-Bike Optimized

Ergonomic 2-finger aluminum brake lever

One-piece 4-piston brake caliper made of forged aluminum for exceptional rigidity

EBT (Easy Bleed Technology)

MagnetiXchange brake piston for easy pad replacement

fastening screws with hexagon socket T25

Technical data:

Material: Carbotecture® (housing), aluminum (brake lever & brake caliper)

Brake lever: can be used on the right and left (for handlebars Ø 22.2 mm)

Lever width adjustment: Yes (via T25 hexagon socket wrench)

Brake caliper: Postmount (hole spacing 74 mm)

Cable length: 2,200 mm (can be shortened)

Brake line: MAGURA disc-tube 2.2

Brake medium: MAGURA Royal Blood mineral oil

Brake pad: MAGURA 8.S Sport

Weight: approx. 255 g
