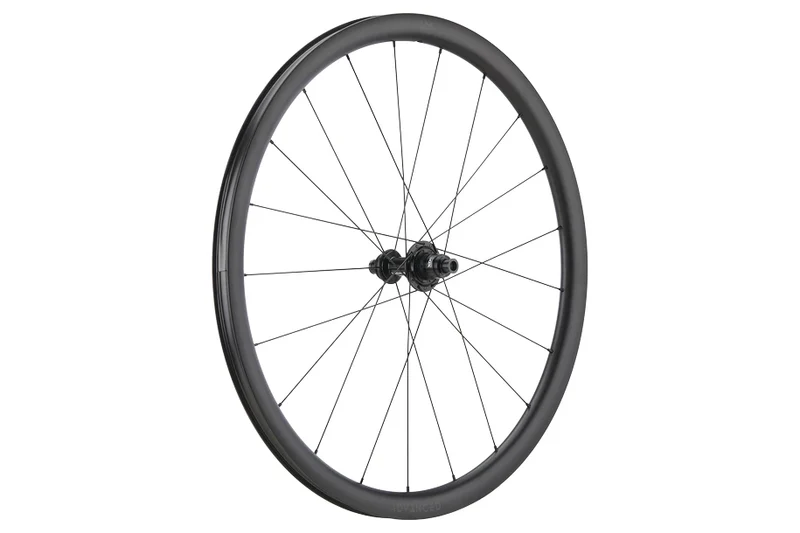

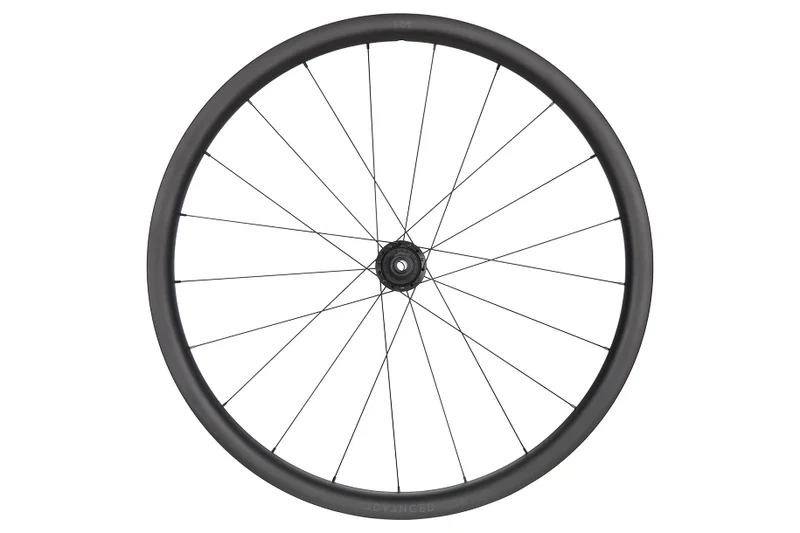

Newmen balance bike Advanced G.34 622 FADE R SJ CL 12x148 SH

Newmen balance bike Advanced G.34 622 FADE R SJ CL 12x148 SH

Newmen's Advanced wheels deliver top-level performance in every situation and provide the perfect suspension system for the ambitious gravel biker. They allow you to blast across gravel roads at full speed, but also tackle trails or longer climbs. They combine cutting-edge technology, low weight, and first-class handling with a truly fair price-performance ratio.

Advanced Gravel Carbon Rim
The Advanced G.34 gravel rim is the ideal foundation for this wheelset. It's made exclusively from high-quality UD carbon fibers, achieving the perfect balance between stiffness and comfort. The generous internal width allows for the mounting of tires up to 50 mm wide. Combined with the slightly flared sidewall, this results in a rounder profile and noticeably improved grip. Furthermore, lower tire pressures can be used, and small impacts from the road surface are absorbed more effectively. To prevent damage, Newmen has opted for a hookless profile, which has been significantly reinforced. This also enhances tubeless compatibility, allowing you to fully utilize the advantages of this system.
Attention was also paid to the external appearance. The rim can be used with the recessed Streem valve, creating a clean look and improving aerodynamics. Furthermore, only a very thin layer of clear coat was applied after production to allow the carbon fiber structure to remain visible.

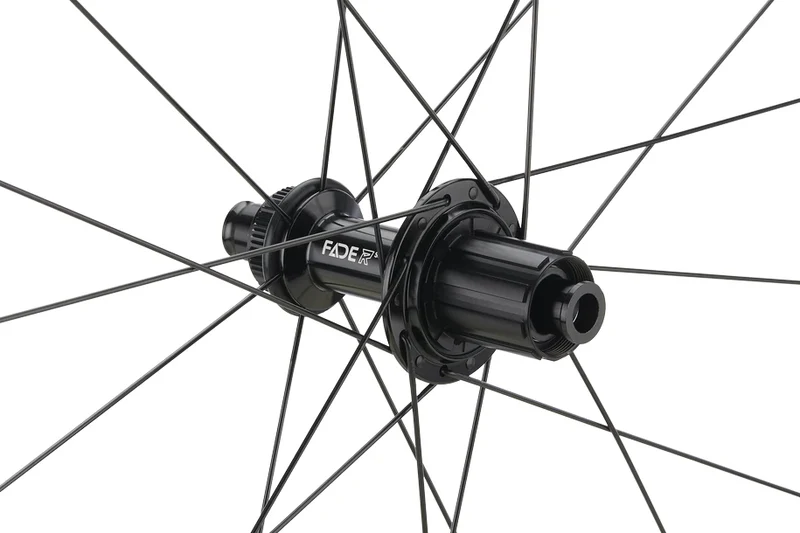

Fade R hub
At the heart of the wheel spin Newmen's own Fade R hubs. Equipped with high-quality, double-sealed industrial bearings, they stand for durability under all conditions. Unlike the already proven FADE Road hubs, this version has been internally reinforced. This allows for better compensation of forces and makes it even approved for use on e-road bikes. The combination of J-bend and straight-pull lacing is particularly striking. This allows for a reduction in the number of spokes while maintaining the same stiffness. This saves weight and improves aerodynamics. The 36-tooth ratchet freehub ensures instantaneous acceleration. Additionally, Reduced Noise technology provides a pleasant freehub sound. Furthermore, Newmen uses a special grease that has 25% higher water absorption capacity and a very high bleed temperature, protecting the bearings from premature wear and corrosion.

Sapim Race spokes
The most popular spoke in Sapim's range by far is the virtually indestructible Race. Despite its still low weight, it allows for the construction of the most robust wheels. The elastic center section easily withstands high peak loads. Furthermore, the elimination of the heavily stressed spoke bend removes a potential point of failure, further minimizing the risk of punctures. A true all-rounder, ready for any adventure.

Technical data:

Intended use: Gravel, E-Gravel up to 60 Nm torque
Wheel size: 28" (ETRTO: 622 x 25 mm)
Rim type: Clincher (wire and folding tires)
Brake type: for disc brakes only
Brake disc mount: Center Lock
Material:
Rim: Carbon; Hub: Aluminum
Inner width: 25 mm
Outer width: 31 mm
Rim height: 34 mm
Number of holes: 21
Axle standard: 12x148 mm thru axle Boost
Storage: 4x industrial storage
Freehub compatibility: 12-speed SRAM XDR
Freewheel type: Pawl freewheel with 3 pawls and 36 detents
Spokes: 21x Sapim Race 2.0 | 1.8 | 2.0 Straightpull / J-Bend (black)
Spoke pattern: Disc side: radial | Drive side: 3-cross
Tubeless compatible: yes
Recommended tire width: 35 - 50 mm
Maximum air pressure: 4.5 bar
Maximum system weight: 130 kg (rider, bike, clothing and any luggage)
Rim color: matte black with grey decals
Hub color: matte black

Weight according to manufacturer: 730g
