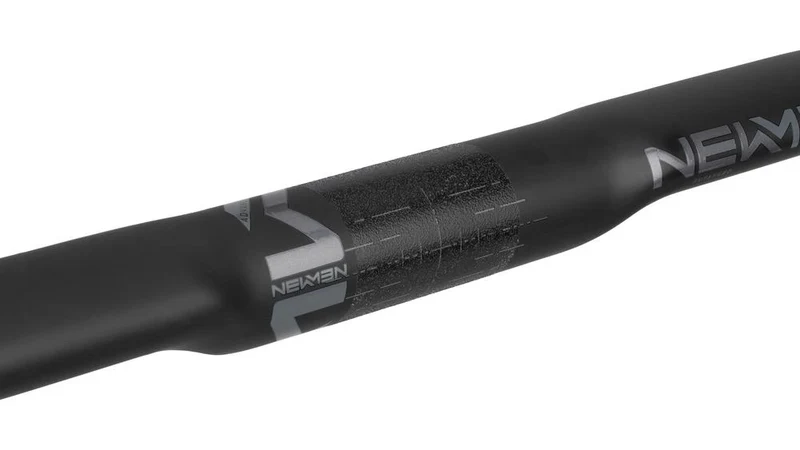

Newmen racing handlebar Advanced 318

Newmen racing handlebar Advanced 318

Fast and comfortable! Thanks to the use of high-quality carbon fibers, the Newmen Advanced Wing Bar is extremely stiff and offers high safety reserves despite its low weight. Its modern design allows for easier access to the shift and brake levers. Its shallow 125mm drop provides a comfortable position in the drops, making it an excellent choice for long training rides and grand fondos. The flattened tops make the Advanced Wing Bar more aerodynamic. Integrated cable routing channels ensure a clean cockpit.

Note: The manufacturer's specified handlebar width refers to the drop bar width (center to center). In the top bar area at the brake lever clamp, the handlebars are approximately 20 millimeters narrower due to the 5-degree flare.


Technical data:

Intended use: Road bike, cyclocross, gravel
Material: UD Carbon (Toray/Nano Epoxy Resin)
Top link shape: ergonomic
Lower link shape: compact
Cable routing: external cable ducts
Handlebar clamp diameter: 31.8 mm
Handlebar width grip position (center to center): 360 mm, 380 mm, 400 mm, 420 mm or 440 mm
Handlebar width (center to center): 380 mm, 400 mm, 420 mm, 440 mm or 460 mm
Pre-positioning / Reach: 80 mm
Lowering / Drop: 125 mm
Outward bend / flare: 5°
Maximum system weight (rider, bike and luggage): no limit
Maximum permissible torque: Stem 6 Nm | Components 1.5 Nm
Color: Carbon black
Finish: UD matt

Weight according to manufacturer: 200g (400 mm), 215g (420 mm), 225g (440 mm), 235g (460 mm)
