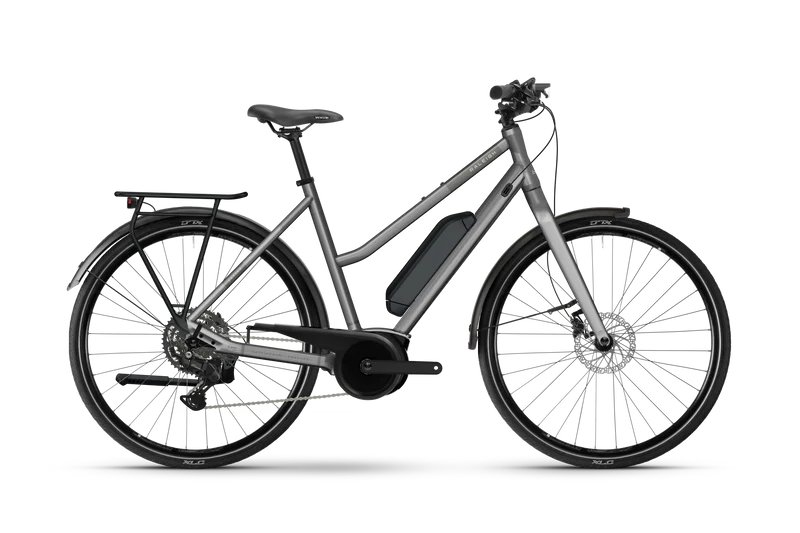

RALEIGH Captus

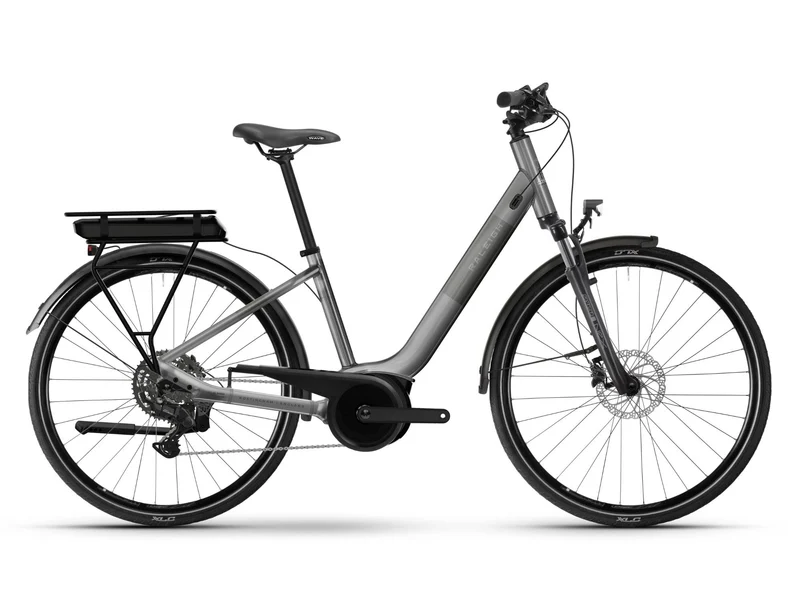

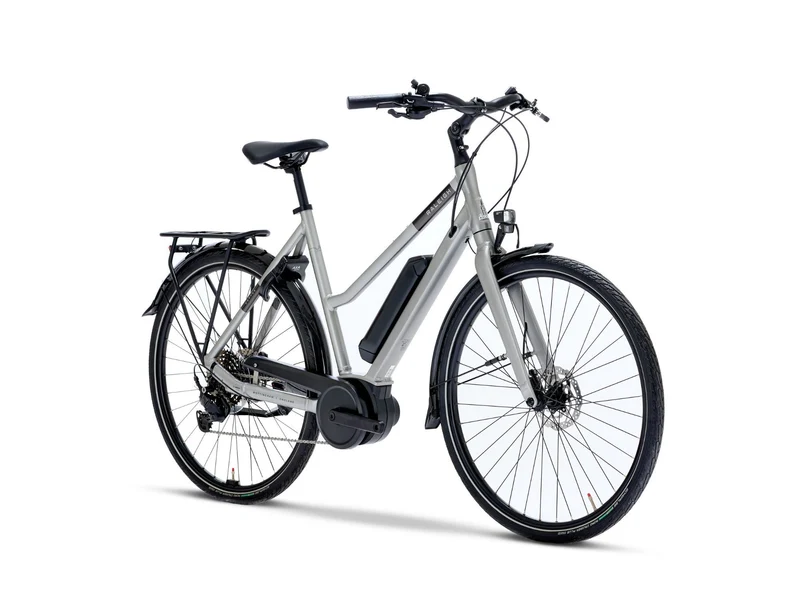

The Raleigh Captus is back. With a completely new sleek frame platform, available in either low or midstep options. Lowstep featuring front suspension and a rack mounted battery, Midstep equipped with a downtube battery and a rigid alloy fork. Both options come with Shimano gears and brakes.

All new 6061 alloy frame
Bosch Active Line motor
Bosch LED remote
400Wh battery
Shimano CUES 9 speed gearing

Brake system

• Brake Front Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 160 mm
• Brake Front Mount: Post Mount
• Brake Rear Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 160 mm
• Brake Rear Mount: Post Mount
• Brake Lever Description: Shimano, Altus BL-MT-200
• Third Brake: No

Carrier

• Carrier Rear Description: Raleigh, MIK, CRP Introvert BES3
• Max Weight Carrier Rear: 27.5 kg

Drivetrain

• Cassette Description: Shimano, Cassette, CUES CS-LG300-9, HG
• Cassette Teeth: 11-41T
• Chain Description: Shimano, Chain, CUES CN-LG500 9-11s, LINKGLIDE
• Chain Guard Description: SKS, Chainguard, Chainbow-E
• Crankset Description: Samox, EC37A-F9-BNI Cranks + CR Miranda DM
• Crankset Teeth: 38T
• Crankset Type: single
• Derailleur Rear Description: Shimano, Cues, CUES RD-U4000-GS 9s, Shadow+
• Gear Description: Shimano, Derailleur, CUES
• Automatic Gear: No
• Number Of Gears: 9
• Pedal Description: XLC, VPE-527 Alloy w/ Reflector
• Shifter Right Description: Shimano, Triggershift, CUES SL-U4000-9R, Rapidfire+

E-bike components

• Battery Description: Bosch
• Battery Capacity: 400 Wh
• Battery Location: Carrierpack
• Battery Removeable: Yes
• Charger Description: Bosch, Smart Charger, Charger 2A 220-240V
• Display Description: Bosch, Led, LED Remote
• Display Removeable: Not Removable
• Display Steercontrol: No
• Max Support Speed [km/h]: 25 km/h
• Motor Description: Bosch, Active Line
• Motor Torque [nm]: 40 Nm
• Motor Location: Center
• Sensor: Pedalforce, speed & rotation
• Power Handle: No
• Walk Assist: Yes

Frame and more

• Framesize:
  • · 41 cm
  • · 46 cm
  • · 51 cm
  • · 48 cm
  • · 53 cm
  • · 57 cm
• Framesize Convection:
  • · XS
  • · S
  • · M
  • · L
• Front Fork Description: Suntour, SF20 NEX DS MBL, 50 mm
• Front Fork Type:
  • · Suspension
  • · Non Suspension
• Frame Description: LOW, Aluminium, Low-Step
• Stand Description: Ursus, Single, R90 Mooi Plus, 40 mm, Adjustable, Anti-Noise
• Modular Rail System: No

Handlebar and Saddle

• Ring: Yes
• Handgrip Description: XLC

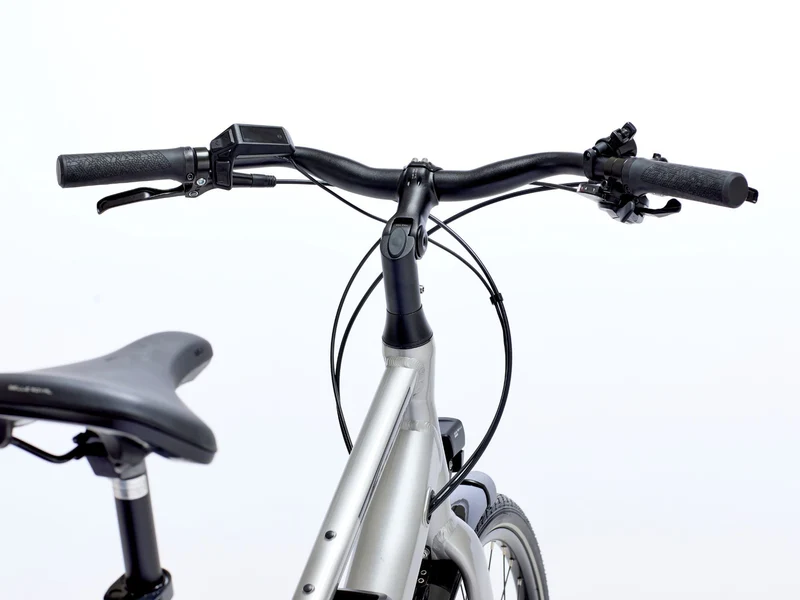

• Handlebar Description: XLC, Flat bar, JD-TR25AL, Dia. 31.8 mm, L: 640 mm
• Handlebar Material: Aluminium
• Headset Description: VP, Semi-integrated, Z108AC ZS44/ZS44

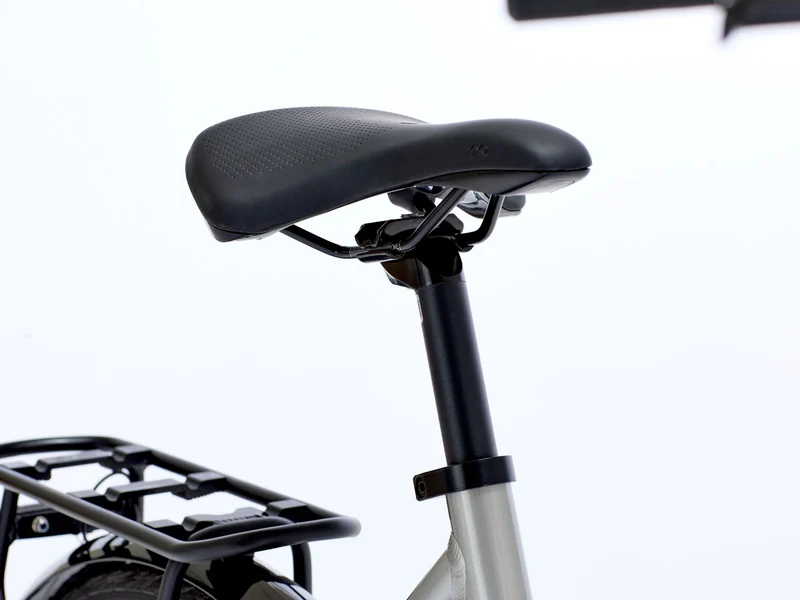

• Saddle Description: Selle Royal, Wave 8214 DC
• Seatpost Description: XLC, Non Suspension, SP-DC1, Dia. 27.2 mm, L: 350 mm
• Seatpost Material: Aluminium
• Stem Adjustable:
  • · No
  • · Yes
• Stem Description: XLC, JD-ST161A, Dia. 31.8 mm, L: 70 mm
• Steering Lock: No

Lighting

• Brake Light: No
• Front Light Description: Herrmans, Via E-bike System, CL3, 30 Lux, 6-12V, Nex Bracket
• Rear Light Description: AXA, Via E-bike System, Juno E-Bike, 6-12V

Locks

• Lock Description: Abus, Ring lock

Other

• Connectivity App: Yes
• Suitable For Range Extender: No
• Suitable For Childseat: Yes

Wheels and wheel components

• Axle Type Front: Quick-release
• Axle Type Rear: Quick Release 5mm
• Hub Front Description: Shimano, HB-QC300 QRx100 mm, 36H, Centerlock
• Hub Rear Description: Shimano, FH-QC300 QRx135 mm, 36H, Centerlock, HG
• Mudguard Front Description: EuroFender, Tempo 58, black
• Mudguard Rear Description: EuroFender, Tempo 58, black
• Rim Description: Ryde, ZAC 421 36H 8,5 mm Valve
• Spoke Description: Sapim, Leader Inox Dia. 2.0 mm
• Tyre Description: Schwalbe, Road Cruiser Plus PunctureGuard, 50-622
• Tyre Rear Description: Wired Tire
• Wheelsize Description: 28
