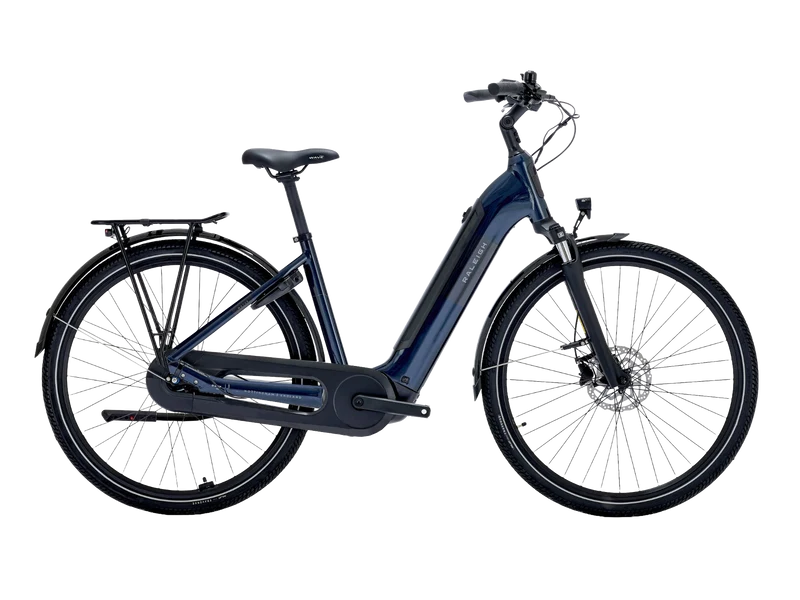

RALEIGH Motus Hub Gear Low Step

The new Motus Hub Gear model with an all new Lowstep frame platform. With a powerful Bosch Performance Line motor and an internal Powertube 500Wh battery. Fully equipped with integrated lights, mudguards and a MIK rear carrier, Shimano Nexus 5 speed eBike specific hub gears and Shimano hydraulic disc brakes.

All new alloy frame
Bosch Performance Line Motor
Bosch Purion 200 Display
500Wh Powertube Battery
Shimano Nexus 5 Speed Hub Gears

Brake system

• Brake Front Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 180 mm
• Brake Front Mount: Post Mount
• Brake Rear Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 160 mm
• Brake Rear Mount: Post Mount
• Brake Lever Description: Shimano, Altus BL-MT-200
• Third Brake: No

Carrier

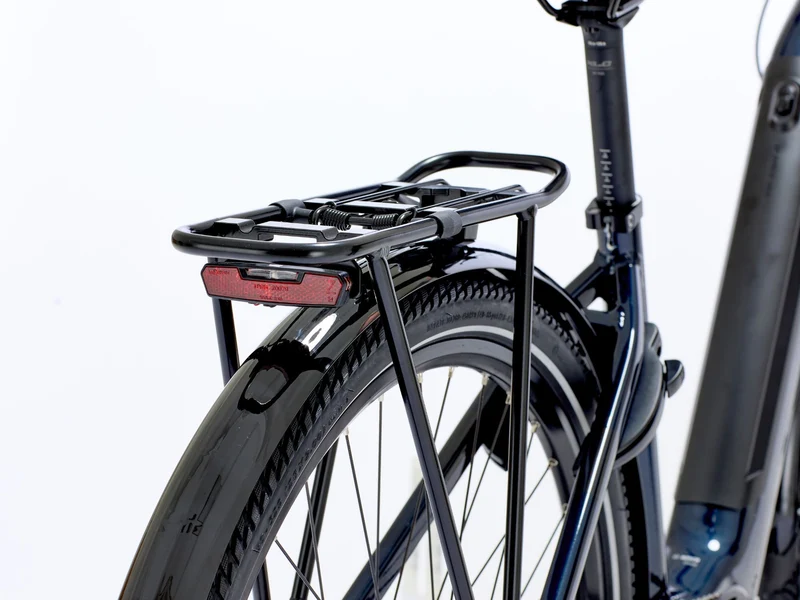

• Carrier Rear Description: Raleigh, MIK, CRP Introvert BES3
• Max Weight Carrier Rear: 27.5 kg

Drivetrain

• Cassette Description: KMC, Sprocket, Sprocket
• Cassette Teeth: 27T
• Chain Description: KMC, Chain, e1 EPT
• Chain Guard Description: Hesling, Chainguard, CINCO CRP BDU 34
• Crankset Description: Samox, EC37-F9 ISIS Cranks + CR EMS05
• Crankset Teeth: 38T
• Crankset Type: single
• Gear Description: Shimano, Internal Gear Hub
• Automatic Gear: No
• Number Of Gears: 5
• Pedal Description: XLC, VPE-527 Alloy w/ Reflector
• Shifter Right Description: Shimano, Gripshift, Nexus SL-C7000-5, Revoshift

E-bike components

• Battery Description: Bosch
• Battery Capacity: 500 Wh
• Battery Location: Powertube
• Battery Removeable: Yes
• Charger Description: Bosch, Smart Charger, Charger 2A 220-240V
• Display Description: Bosch, Purion, Purion 200
• Display Removeable: Not Removable
• Max Support Speed [km/h]: 25 km/h
• Motor Description: Bosch, Performance Line
• Motor Torque [nm]: 75 Nm
• Motor Location: Center
• Sensor: Pedalforce, speed & rotation
• Power Handle: No
• Walk Assist: Yes

Frame and more

• Framesize:
  • · 41 cm
  • · 46 cm
  • · 51 cm
  • · 57 cm
• Framesize Convection:
  • · XS
  • · S
  • · M
  • · L
• Front Fork Description: Suntour, SF24 NEX E25 DS, 50 mm
• Front Fork Type: Suspension
• Frame Description: LOW, Aluminium, Low-Step
• Stand Description: Ursus, Single, R90 Mooi Plus, 40 mm, Adjustable, Anti-Noise
• Modular Rail System: No

Handlebar and Saddle

• Ring: Yes
• Handgrip Description: Herrmans

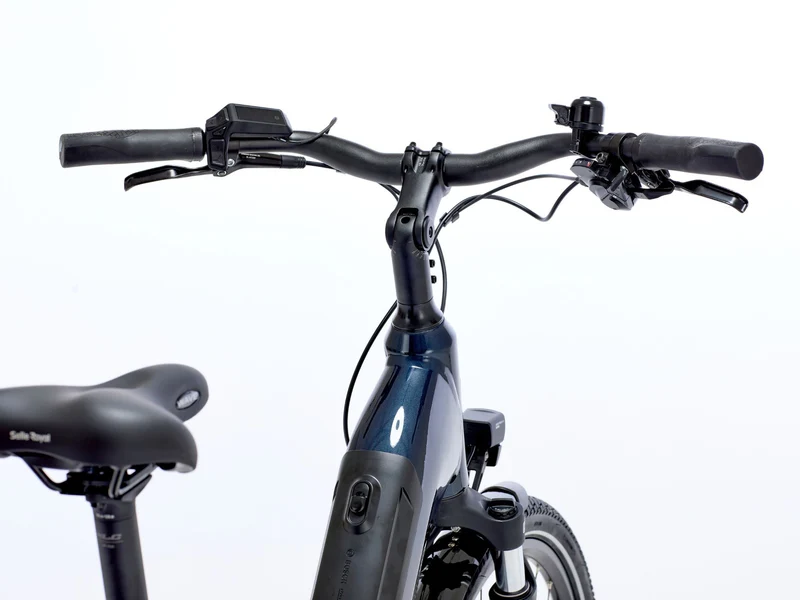

• Handlebar Description: XLC, Flat bar, JD-TR25AL, Dia. 31.8 mm, L: 640 mm
• Handlebar Material: Aluminium
• Headset Description: VP, Semi-integrated, J213PE ZS44/ZS55
• Saddle Description: Selle Royal, Wave 8214 DC
• Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 31.6 mm, L: 300 mm
• Seatpost Material: Aluminium
• Stem Adjustable: Yes
• Stem Description: XLC, JD-ST243A-2, Dia. 31.8 mm, L: 85 mm

Lighting

• Brake Light: No

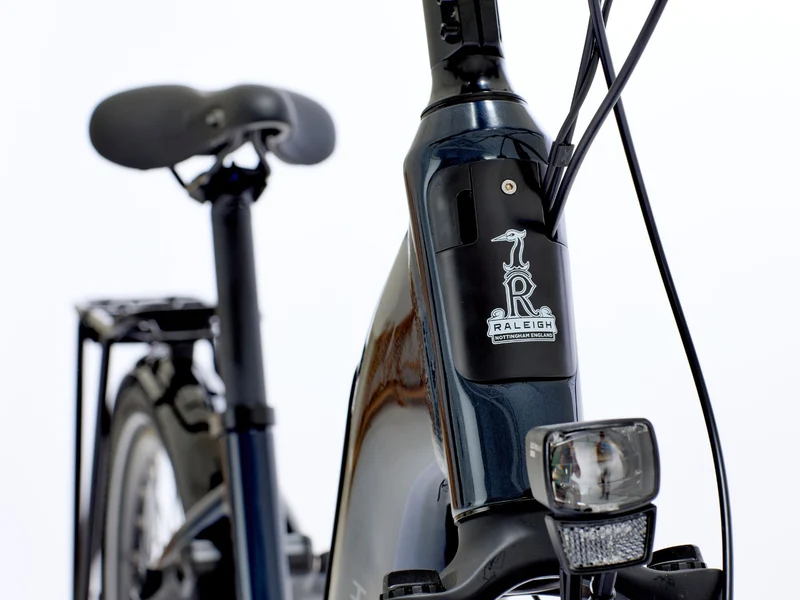

• Front Light Description: AXA, Via E-bike System, NXT 45 E-Bike, 45 Lux, 5-12V
• Rear Light Description: AXA, Via E-bike System, Juno E-Bike, 6-12V

Locks

• Lock Description: Abus, Ring lock, 4750
• Plug-In Cable Compatible: Yes

Other

• Connectivity App: Yes
• Suitable For Range Extender: No
• Suitable For Childseat: Yes

Wheels and wheel components

• Axle Type Front: Quick-release
• Axle Type Rear: Fixed
• Hub Front Description: Shimano, HB-QC300 QRx100 mm, 36H, Centerlock
• Hub Rear Description: Shimano, Nexus, Nexus SG-C7000-5D, 36H, CL, Internal Geared Hub
• Mudguard Front Description: EuroFender, Tempo 58, black
• Mudguard Rear Description: EuroFender, Tempo 58, black
• Rim Description: Ryde, ZAC 421 36H 8,5 mm Valve
• Spoke Description: Sapim, Leader Inox Dia. 2.0 mm
• Tyre Description: XLC, Traverse CTC, 50-622
• Tyre Rear Description: Wired Tire
• Wheelsize Description: 28
