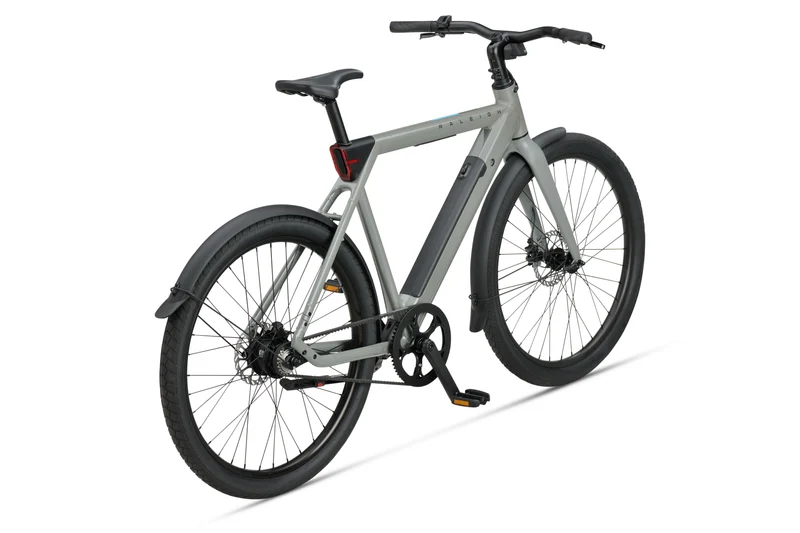

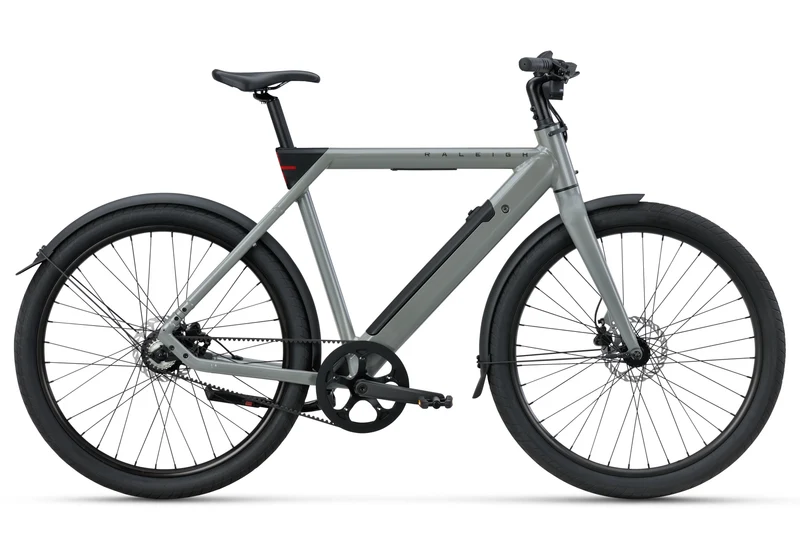

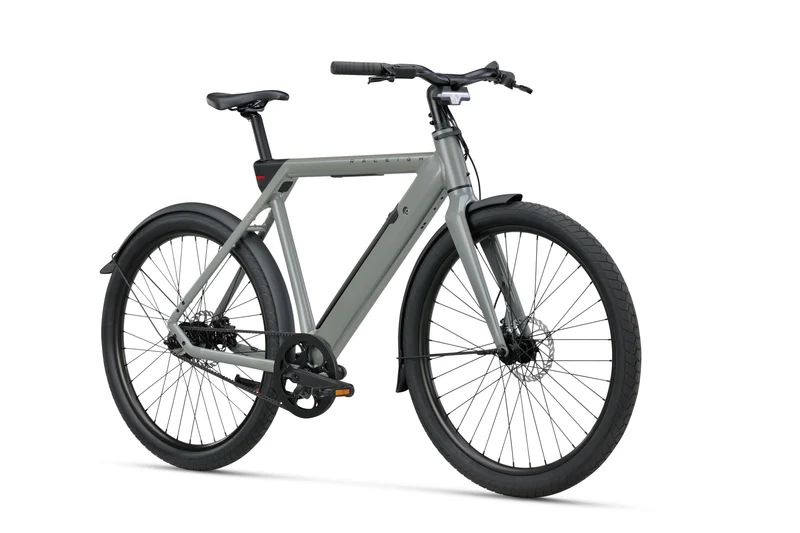

RALEIGH ONE

Meet the Raleigh ONE – our smart connected e-bike built for the everyday journey and the extraordinary detour. With high-quality, low-maintenance components and app-enabled features the ONE is your ultimate city companion. Tap into one of our membership services to unlock even more: theft alerts, smart maintenance, and total peace of mind. Inspired by legacy, connected to the now. This is Raleigh ONE.

Light aluminium frame with fully hidden cables

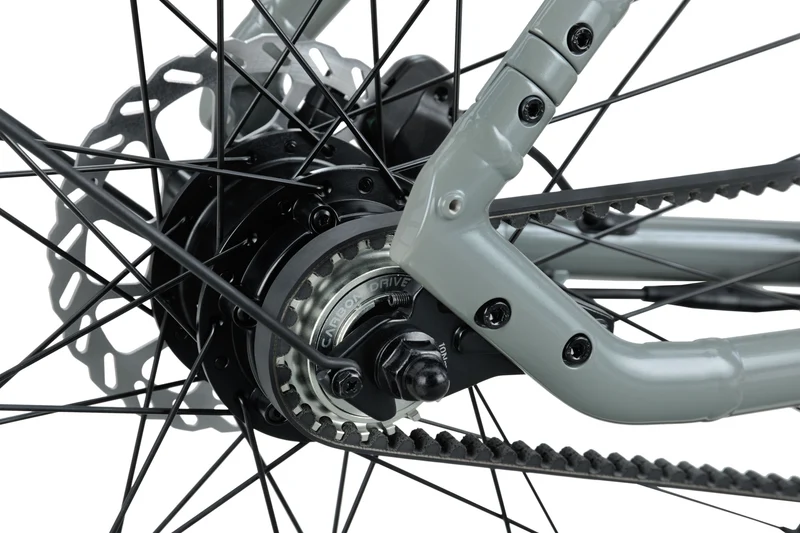

Quiet Mivice rear hub motor, smooth support up to 25 km/h

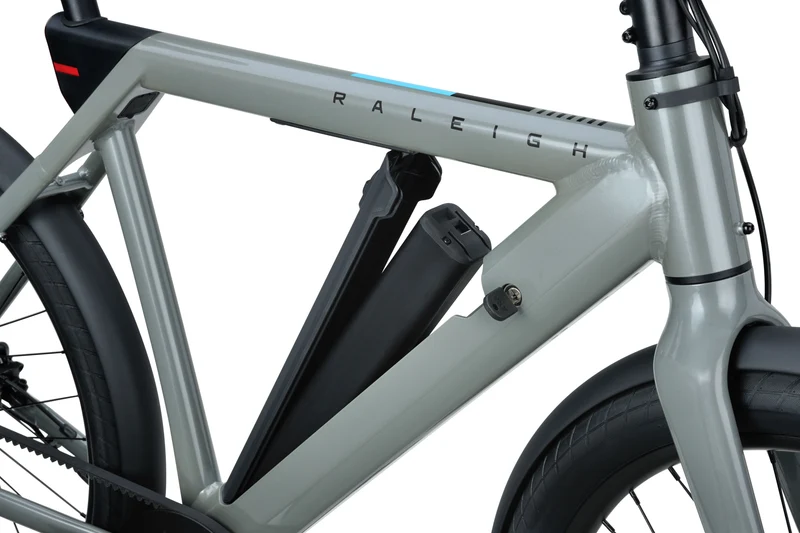

360 Wh removable battery, full again in about 2h20

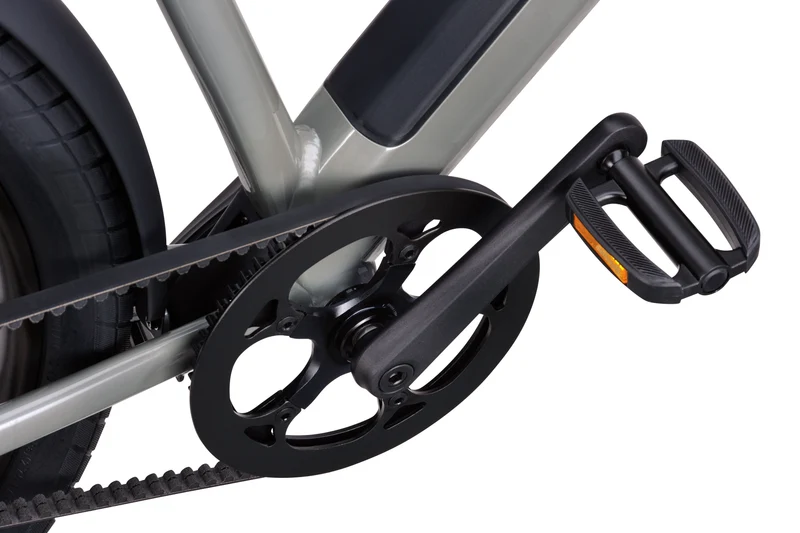

Gates Carbon belt drive: no oil, no rust, no fuss

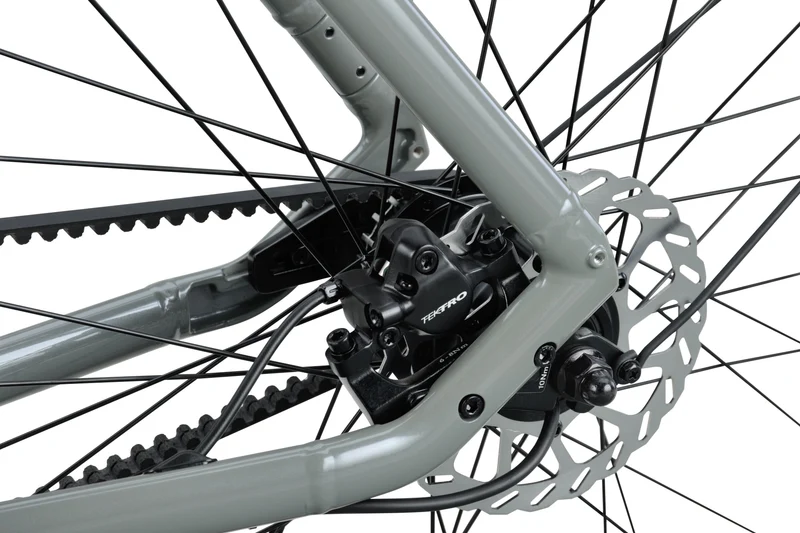

Wide 2.2 tyres and Tektro hydraulic disc brakes

Bike Geometry

• Chain stay length [mm]: 474 mm
• Head tube angle:
  • · 72.5 degrees
  • · 72 degrees
• Head tube length [mm]: 145 mm
• Reach [mm]: 430 mm
• Stack [mm]: 602 mm
• Stand over height [mm]: 830 mm
• Seat tube angle:
  • · 72.5 degrees
  • · 72 degrees
• Seat tube length [mm]: 582 mm
• Wheelbase [mm]: 1106 mm

Brake system

• Brake Front Description: Tektro, Hydraulic Disc brake, HD-T3020
• Brake Front Mount: Post Mount
• Brake Rear Description: Tektro, Hydraulic Disc brake
• Brake Rear Mount: Post Mount
• Third Brake: No

Carrier

• Carrier Front Description: Optional

Drivetrain

• Cassette Teeth: 22
• Chain Description: Gates, Belt
• Crankset Description: Samox, EC33-F0-JIS-R EC33-F5-JIS-L
• Crankset Teeth: 60
• Crankset Type: single
• Gear Description: Single Speed
• Number Of Gears: 1

E-bike components

• Battery Description: Vestel, InTube IF04 360 Wh
• Battery Capacity: 360 Wh
• Battery Location: Powertube
• Battery Removeable: Yes

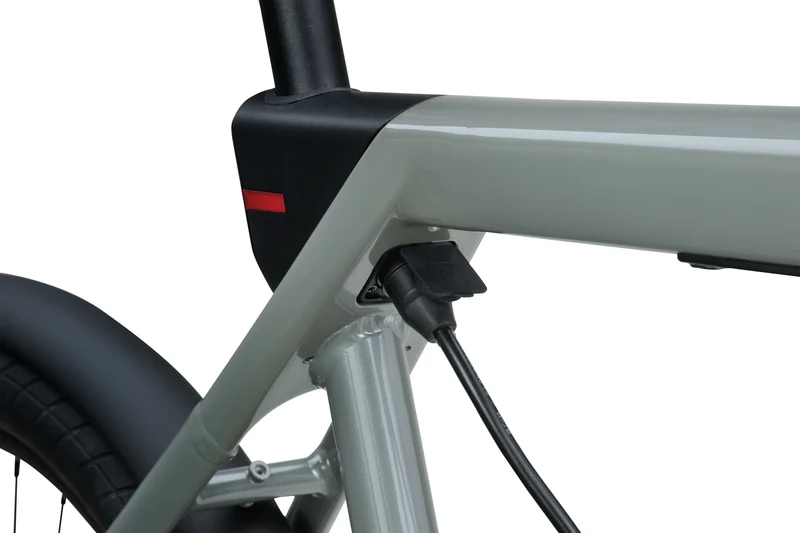

• Charger Description: MIVICE, Quick Charger, Quick-Charger 5A
• Display Description: MIVICE, C201B Accell 36V, 250W Remote
• Display Removeable: Not Removable
• Max Support Speed [km/h]: 25 km/h
• Motor Description: MIVICE
• Motor Torque [nm]: 35 Nm
• Motor Location: Rearwheel
• Sensor: Pedalforce
• Power Handle: Yes

Frame and more

• Framesize:
  • · 58 cm
  • · 48 cm
• Framesize Convection: One Size
• Front Fork Type: Non Suspension
• Frame Description: HIGH, Aluminium, Crossbar
• Stand Description: MASSLOAD, Single, CL-KA124, Center, L: 270 mm
• Modular Rail System: No

Handlebar and Saddle

• Ring: Yes
• Handlebar Description: Raleigh, One piece handlebar with stem design by Raleigh
• Handlebar Material: Aluminium
• Headset Description: Integrated, 1.5"+1.5"
• Saddle Description: Velo, VL-3625
• Seatpost Description: Kalloy, Non Suspension, SP-320, Dia. 31.6 mm, L: 350 mm
• Seatpost Material: Aluminium
• Stem Adjustable: No
• Stem Description: Raleigh, integrated in Handlebar

Lighting

• Brake Light: No
• Front Light Description: Raleigh, Via E-bike System, Integrated front light, 170lm K-mark certified

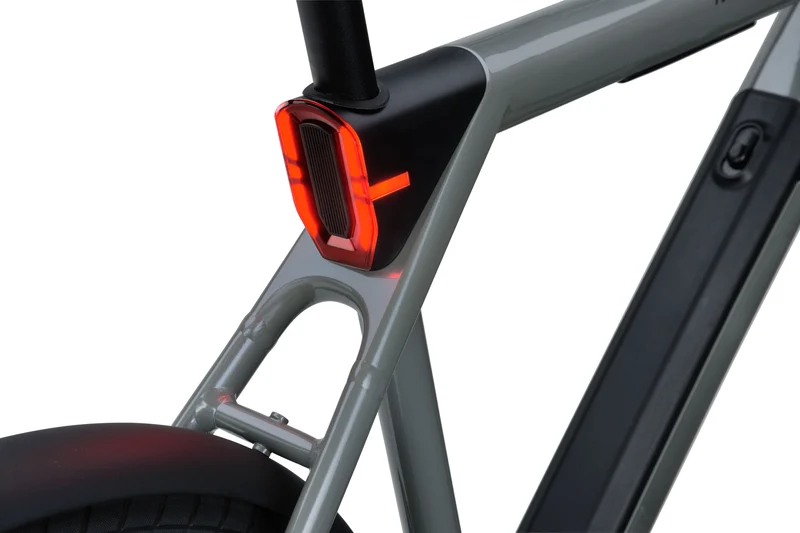

• Rear Light Description: Raleigh, Via E-bike System, Integrated rear light, 10lm K-mark certified

Locks

• Lock Description: GNSS + LTE-M

Other

• Connectivity App: Yes
• Suitable For Childseat: No

Wheels and wheel components

• Mudguard Front Description: Raleigh, Aluminium, black
• Mudguard Rear Description: Raleigh, Aluminium, black
• Spoke Description: CN
• Tyre Description: Raleigh, ONE, 56-584
• Wheelsize Description: 27.5
