Fornitore: REVERSE

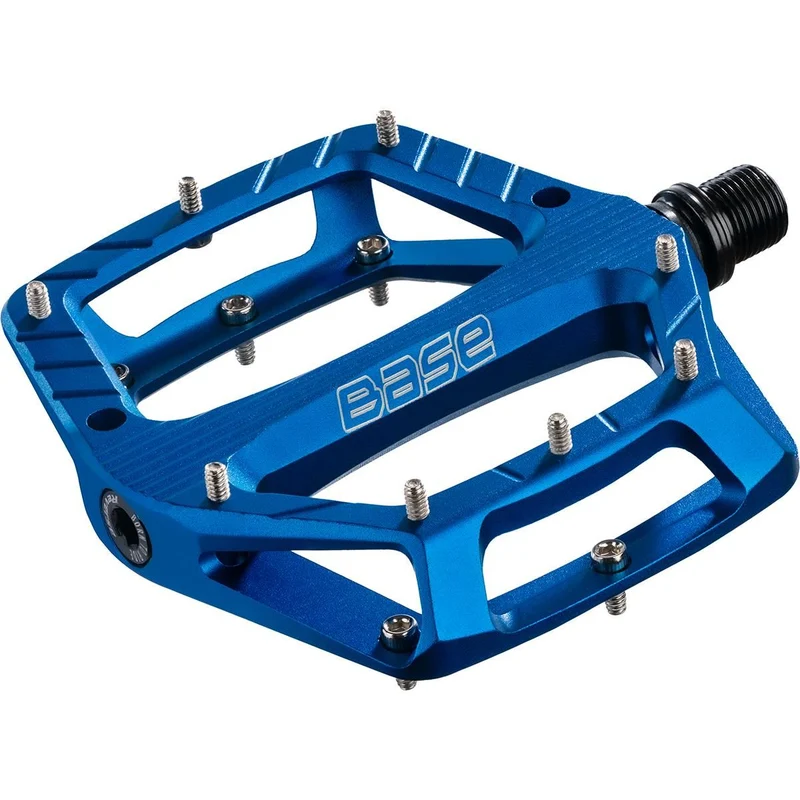

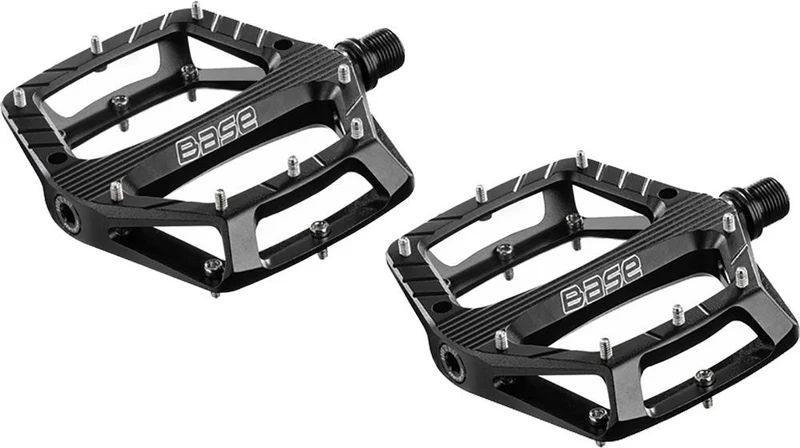

REVERSE Pedal Base
Descrizione
REVERSE Pedal Base
The Reverse Components Base platform pedals combine decades of experience with innovative technology. Thanks to the newly developed "Baurillium" plain bearing, they offer a long-lasting and low-maintenance bearing. The large concave platform and technically sophisticated design ensure a firm footing, while the robust aluminum housing and CrMo steel axle withstand extreme loads.
With individually adjustable pin lengths, they offer additional grip for different conditions, and whether on steep slopes or root-strewn trails, they are a reliable companion for gravity riders.
Features
- Newly developed Baurillium plain bearing
- High-strength CrMo axle
- Interchangeable pins
- Pedal Washer (2 pieces) (washers to protect the crankset)
Technical data
- Pedal body material: aluminum 6061-T6
- Material pedal axle: CrMo steel
- Pedal size: 116 x 104 mm
- Footprint: 106 x 104 mm
- Pedal height: 20 mm
- Pedal thread: 9/16 inch
- Bearing: 1 x multi-sealed industrial bearing / 1 x reverse Baurillium plain bearing
- Pin setup: 16 steel pins per pedal (thread: US size 6/32 inch, length: 11 mm) (optionally available: 9 & 13 mm pins)
- Pin height: 6 mm overhang to the pedal body with 11 mm standard pins (optional: 8 mm overhang to the pedal body with 13 mm pins / 4 mm overhang to the pedal body with 9 mm pins)
- Weight: 420 g per pair (+/- 5% weight tolerance)
- Safety note: Unless otherwise specified by the crank manufacturer, please ensure that the pedals are tightened to a minimum of 37 to a maximum of 42 Nm.
- 1x pair
