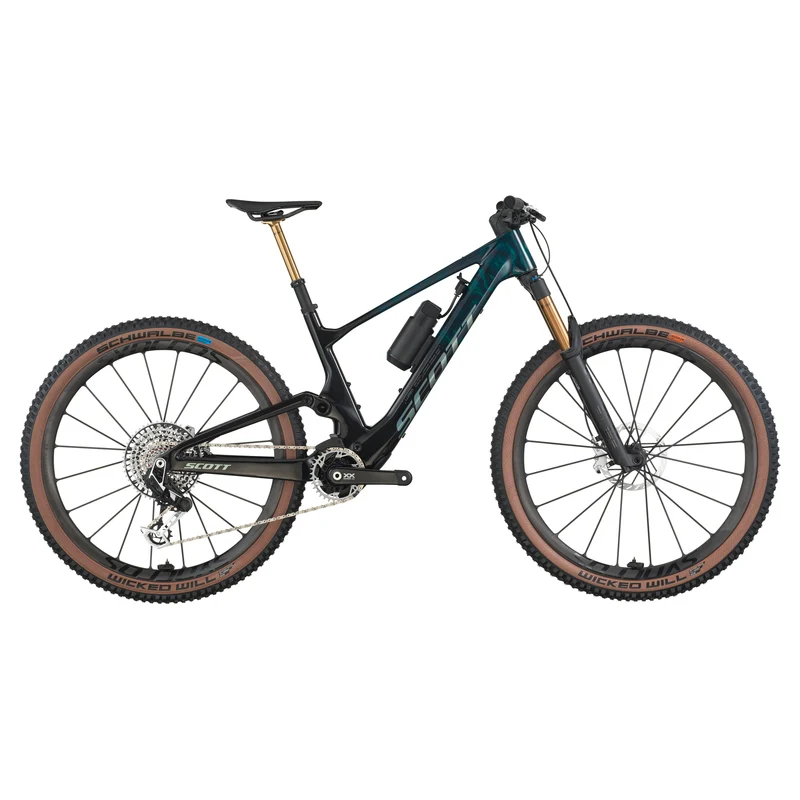

For mountain bikers looking to wring every last ounce of fun out of the trail, the updated Lumen 900 SL eMTB is the ultimate ride. At 15.5kg and specced with more torque than ever, it tricks like a down-country bike and pulls like a full-power torque to blast you out of hairpins and easily overcome monster inclines.
The extra juice is courtesy of TQ’s new HPR60 motor unit, which boosts torque from 50Nm—as on the previous Lumen 900—to 60Nm of thrust that might make you feel like you’ve got a World Champion’s legs. Typically, that improvement comes at the cost of a heavier system weight, but that’s not the case with the HPR60. It’s the same weight as the outgoing motor drive used on the previous Lumen 900, but 20% stronger.
Energy management and range are also improved with cooling fins and new software that combine to make the drive unit as efficient as its predecessor despite the additional torque. Lumen 900 SL takes your rides far with its 360Wh main battery that can be complemented with the included Range Extender Battery. The small-water-bottle-sized extender attaches with a quick-release mount or easily stows away in a day pack.
This Lumen 900 SL features a brightly illuminated color screen for crisp viewing of your motor and battery performance. We’ve also specced it as your ultimate e-MTB with a 140mm FOX Factory 36 SL fork, custom Scott 130mm integrated shock, SRAM XX Eagle AXS, and Motive Ultimate brakes.
FrameCarbon HMXIntegrated Suspension TechnologyFlex Pivot, Adjustable head angleSyncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline
TravelFront: 140mm, Rear: 130mm

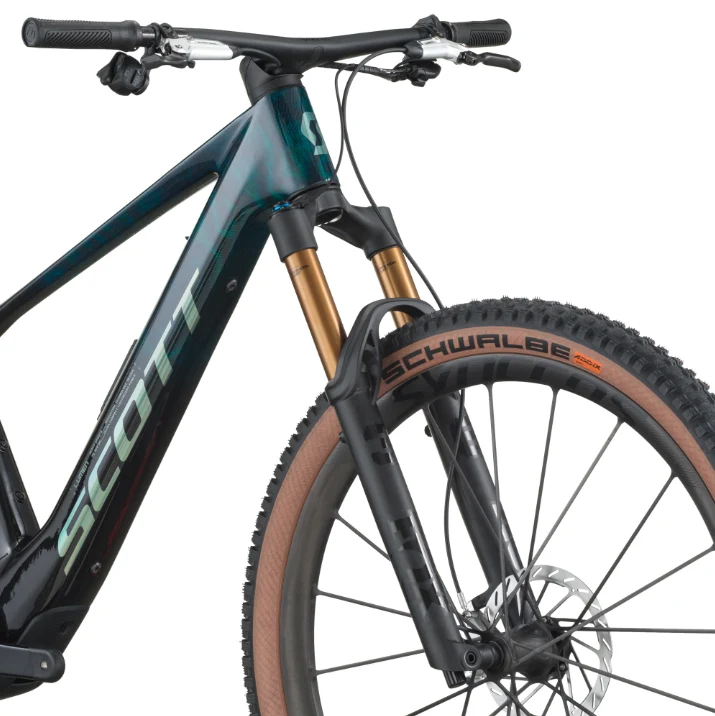

ForkFOX 36SL Factory Air, Kashima Grip SL3-Modes with low Speed adj., Kabolt 15x110mm axle, 44mm offsetTapered steerer, Lockout, Reb. Adj.140mm travel
Rear ShockFOX NUDE 6T Factory EVOL TrunnionSCOTT custom w. travel, geo adj.3 modes: Lockout-Traction Control-DescendLow Speed Adj., Custom large Air volume, Kashima, Reb. Adj.Bearing Hardware, Travel 130-90-Lockout, T165X45mm
Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes

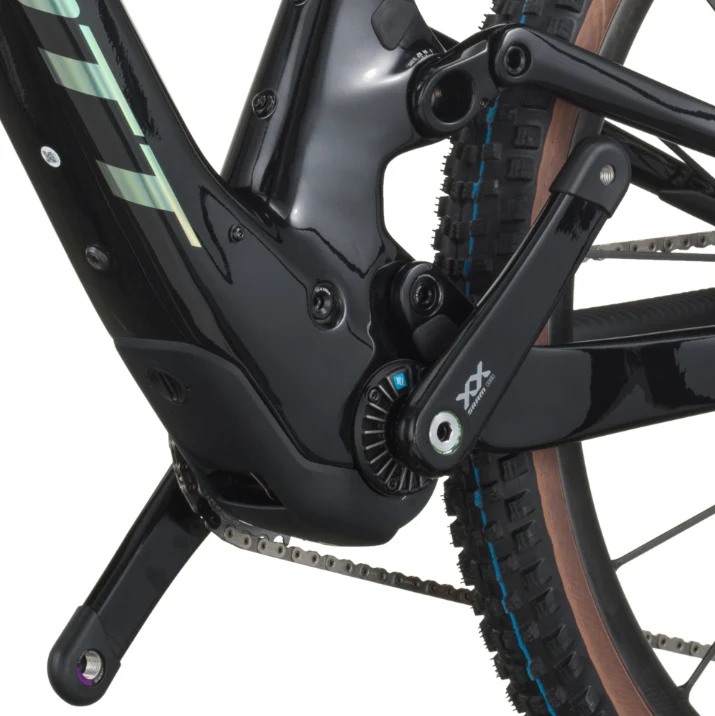

Drive UnitTQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
BatteryTQ Internal 360Wh + Range Extender 160Wh
DisplayTQ HPR ColorBluetooth, ANT+, Dedicated Smartphone app
ChargerTQ 100-240V-4A

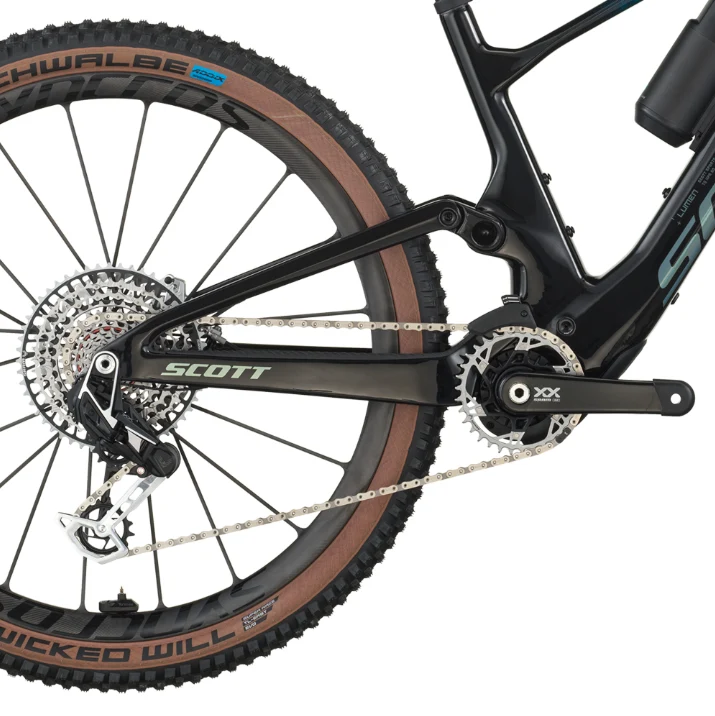

Rear DerailleurSRAM XX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM AXS Pod Rocker Controller
CranksetSRAM XX, Carbon
Chainguidee*thirteen, e*spec Slider
ChainringSRAM XX Eagle Transmission 34T chainring
ChainSRAM CN XX Eagle Transmission
CassetteSRAM XX Eagle XS 1297 Transmission 10-52
BrakesSRAM Motive Ultimate Stealth 4-Piston Disc
RotorSRAM HS2 CL Rotors, F&R 180mm

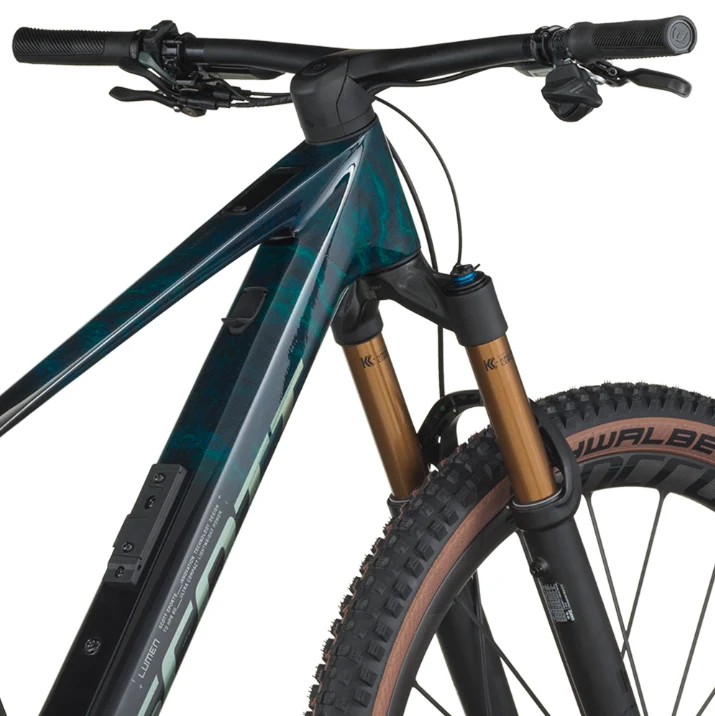

HandlebarSyncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mmSyncros Performance XC lock-on grips
SeatpostFOX Transfer Factory Dropper Post Kashima31.6mm, S size 125mm, M size 140mmL ize 150mm, XL size 175mm
SeatSyncros Tofino Regular 1.0Carbon rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS SystemStainless, +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
WheelsetSyncros Silverton SL2-30 CL full CarbonF: 15x110mm, R: 12x148mm, 30mm Tubeless ready rimDT Swiss 240 Ratchet EXP 36, XD DriverSRAM TyreWiz, Syncros SL Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools
Front TireSchwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Soft
Rear TireSchwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Grip
AccessoriesTire SealantTransport Axle
Approx weight in KG16.0 Tubless setup without RE (1.1kg)
Approx weight in LBS35.27 Tubless setup without RE (1.1kg)
Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Please note that bike specifications are subject to change without prior notice.
