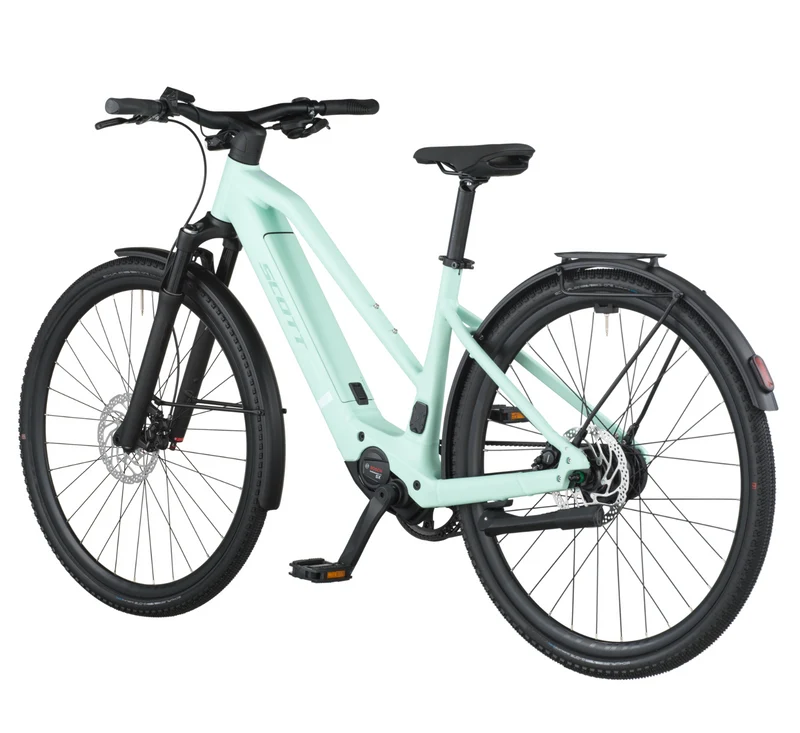

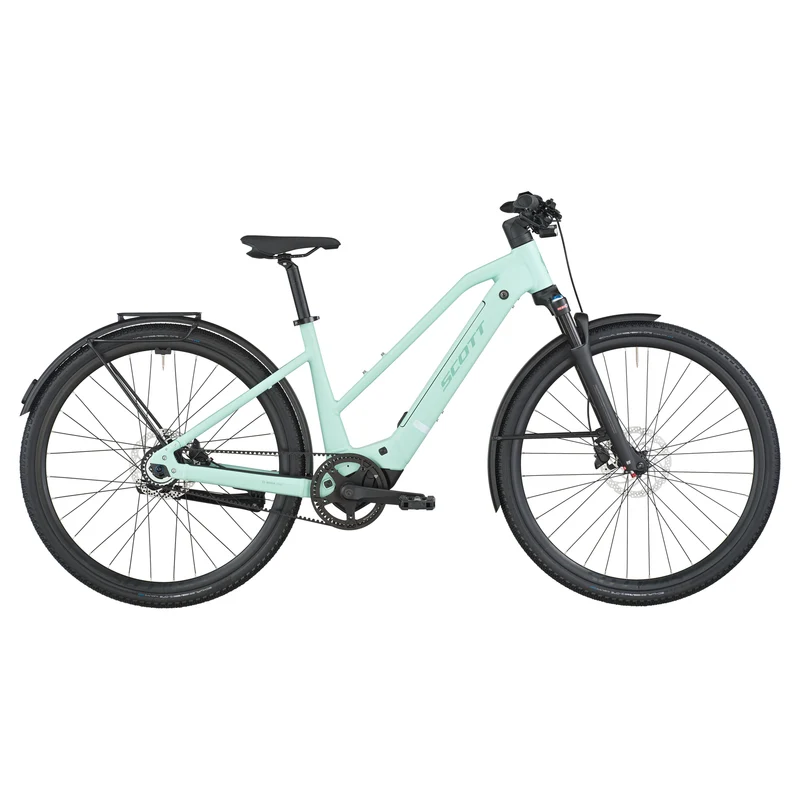

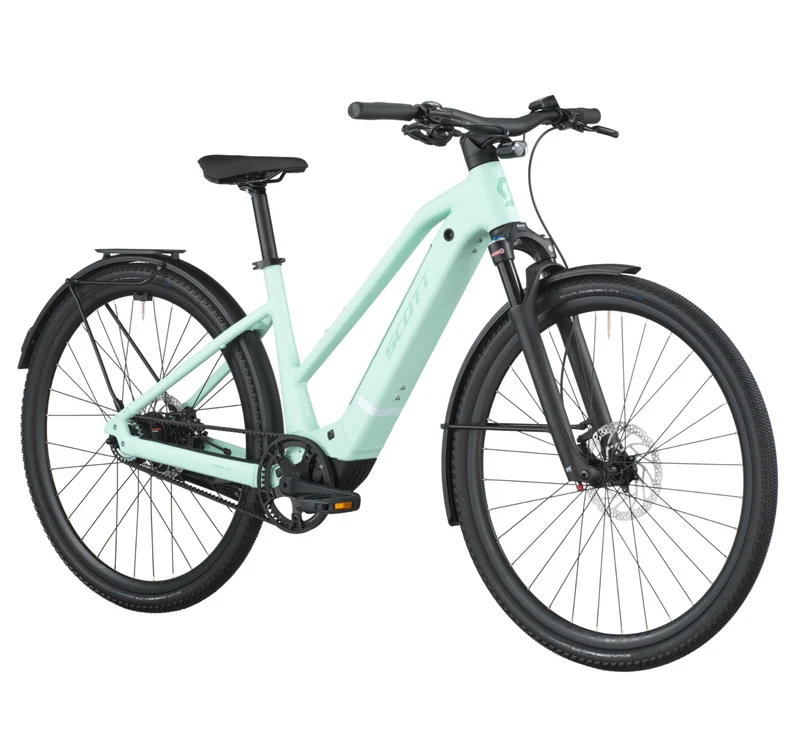

Scott Passage 10 Belt Slope MY26

The Passage 10 Belt Slope E-Bike shares all the power and balanced ride quality of our Passage 10 Belt Bike for effortless and fun riding around town, but it has a lower standover height, making it easier to mount.

Passage 10 Belt Slope avoids the mainstream, bulky aesthetics of most e-urban bikes by using Bosch’s 2kg SX motor and slim 400Wh battery. It’s a powerful combo that keeps the bike light and balanced while delivering hill-crushing power whenever you need it and the range to easily handle a long commute.

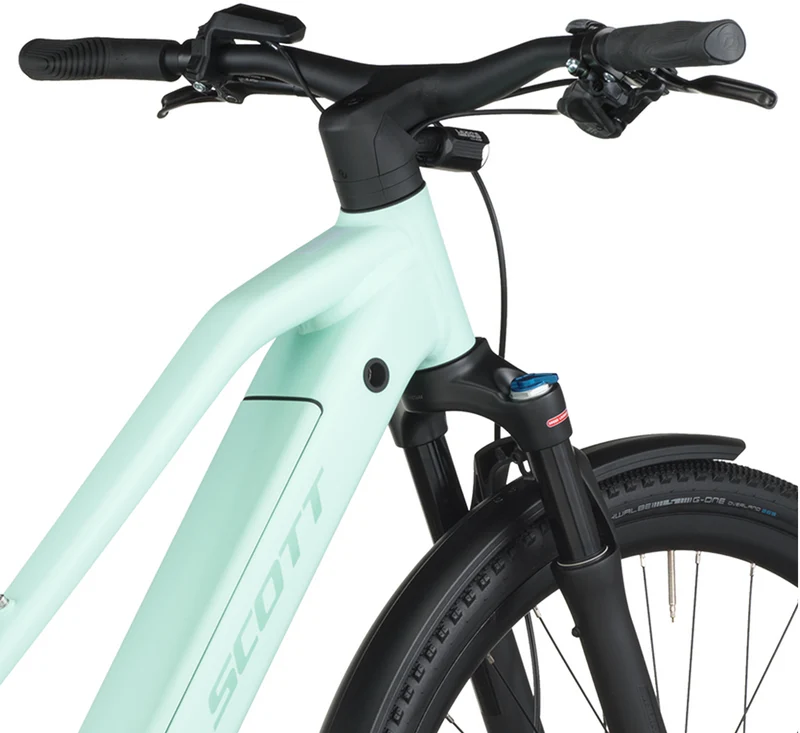

The Bosch SX motor is also nice on the legs, featuring a narrower Q-factor that lets you have a natural pedaling style compared to larger e-bikes you’ll see in the city. Out front is a 75mm suspension fork that cushions your ride from rougher pavement as you zip around town. And if taking the scenic route or packing extra for the commute in, the rear rack sets you up to stow the day’s essentials.

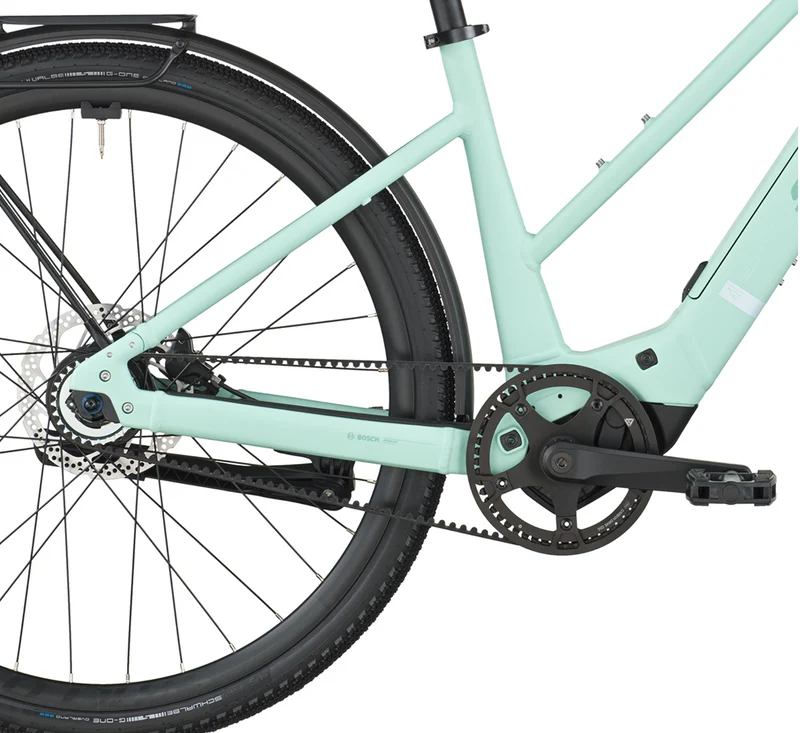

This Passage 10 uses a belt drivetrain that stays much cleaner than a traditional chain drivetrain, uses no lubricant, won’t snag on your clothing, and requires little to no maintenance. So when you’re ready to park Passage for the day, kick out the kickstand and thank it for the effortless ride.

FrameAlloy S-L=29", 6061 Alloy custom butted tubingTop extraction battery Travel75mm ForkSR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel Drive UnitBosch Performance Line SX (BDU314Y)EU: 25kmh BatteryCompact Tube 400Wh DisplayBosch Purion 200 Charger2A Charger ShiftersShimano Alfine SL-S503 Rapid Fire Plus CranksetFSA CK-220 170mm ChainringGates CDC 52T w/Guard ChainGates CDC 125T CassetteGates CDC 26T BrakesShimano BR-MT200 Disc RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm HandlebarSyncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount SeatpostSyncros M3.0, 31.6 SeatSyncros Capilano HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm Front HubShimano HBTC50015B CL, 15x100mm Rear HubShimano Nexus 8 Speed SpokesBlack Spokes RimsSyncros X15 Disc Front TireSchwalbe G-One Overland 365 Performance, 700x45C Rear TireSchwalbe G-One Overland 365 Performance, 700x45C LightsLezyne Fusion E550SM front lightRear Supernova TL3Z RackRacktime Micro Rack SnapIt 2.0 8KG PedalsMarwi SP-827 ExtrasAlumee alloy profile FenderPassage Kickstand Approx weight in KG21.9 Approx weight in LBS48.28 Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.

Please note that bike specifications are subject to change without prior notice.
