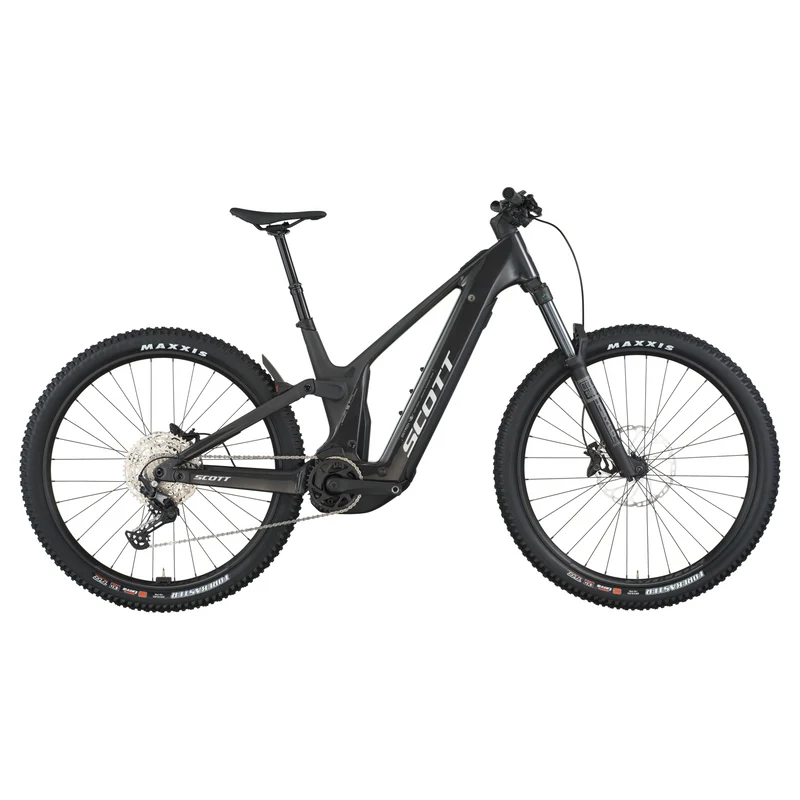

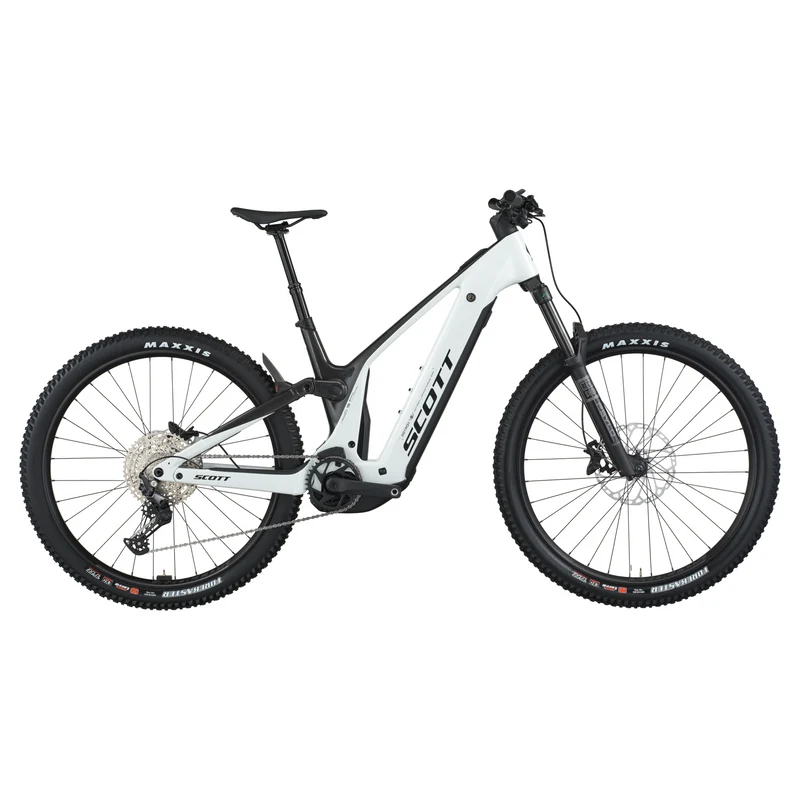

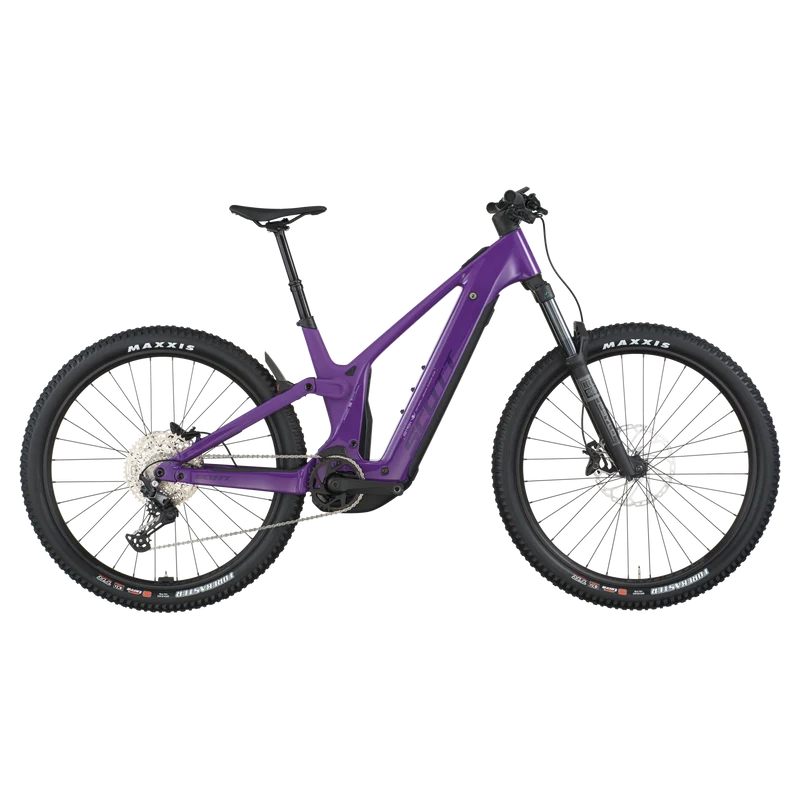

The best of all worlds. Do it all with the Patron eRIDE 920.
Ready to tackle any climb with ease and scream back down with sure footed and confidence inspiring handling. 150mm of front and rear travel gobbles up the terrain while our TracLoc technology allows you to adjust the suspension on the fly to give you an efficient ride in all conditions.
Careful engineering and design makes this E-Bike a dream to work on with clever integration, easily removable battery and great access to the shock. The cover keeps everything clean, reducing service intervals.
Being an E-Bike, the Bosch CX drive unit provides up to 100Nm of power while the 800Wh battery gives you the range to conquer any ride from time crunched hour of power to all day epics. The decision is yours.
Please note that bike specifications are subject to change without prior notice.
Specs
FrameCarbon Main Frame, Alloy SST-CSTIntegrated Suspension TechnologyVirtual 4 Link kinematic, Adjustable head angleSyncros Cable Integration SystemBosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready, Kickstand mount
TravelFront: 150mm, Rear: 150mm
ForkRockShox Psylo Silver RC Air, E-Bike, Comp & Reb Adj., QR Axle 15x110mm axle44mm offset, tapered steerer, 150mm travel
Rear ShockX-Fusion NUDE 5 RLX TrunnionSCOTT custom w. travel, geo adj.3 modes: Lockout-Traction Control-DescendReb. Adj.Travel 150-100-Lockout, T185X55mm
Remote SystemSCOTT TracLoc 2 TechnologySuspension & Dropper Remote3 modes
Drive UnitEU: 25kmh, INT: 20mphBosch Performance Line CX (BDU384Y)
BatteryPowerTube 800Wh
DisplayBosch System Controller, Mini Remote & Intuvia 100
Charger4A Charger
Rear DerailleurShimano Deore RD-M6100 SGSShadow Plus, 12 Speed
ShiftersShimano Deore SL-M6100-IR, Rapidfire Plus
CranksetFSA Alloy
Chainguidee*thirteen, e*spec Slider
ChainringFSA 12 Speed 36T chainring
ChainShimano CN-M6100
CassetteShimano CS-M6100, 10-51
BrakesShimano MT520 4 Piston Disc
RotorFront: SM-RT64 CL 220mm, Rear: SM-RT64 CL 203mm
HandlebarSyncros Hixon 2.0 Alloy 6061Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mmSyncros Performance XC lock-on grips
H'stemSyncros AM 2.0Syncros Cable Integration System4° rise, 6061 Alloy, 31.8mm, 1 1/8"
SeatpostSyncros Duncan Dropper Post 2.531.6mm, S size 125mm, M size 150mm, L size 170mm, XL size 200mm
SeatSyncros Tofino 2.5 Regular
HeadsetSyncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Hub (Front)Formula CL-811, 15x110mm
Hub (Rear)Formula ECT-148M, Boost 148x12mm
SpokesStainless Black
RimsSyncros MD30, 32H, 30mm, Pin JointTubeless ready
Front TireMaxxis Forekaster 29x2.6"120TPI Foldable BeadEXO, TR Tubeless ready3C Maxx Terra
Rear TireMaxxis Forekaster 29x2.6"120TPI Foldable BeadEXO, TR Tubeless ready3C Maxx Terra
LightsSyncros integrated rear fender lightFront Light Cable pre-installed
Approx weight in KG24.8
Approx weight in LBS54.67
Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
