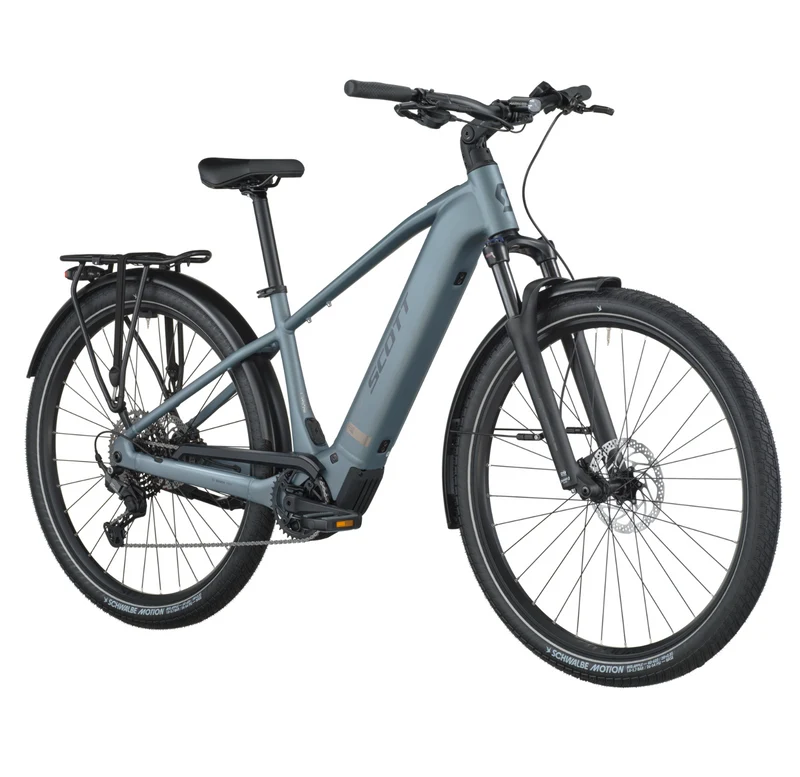

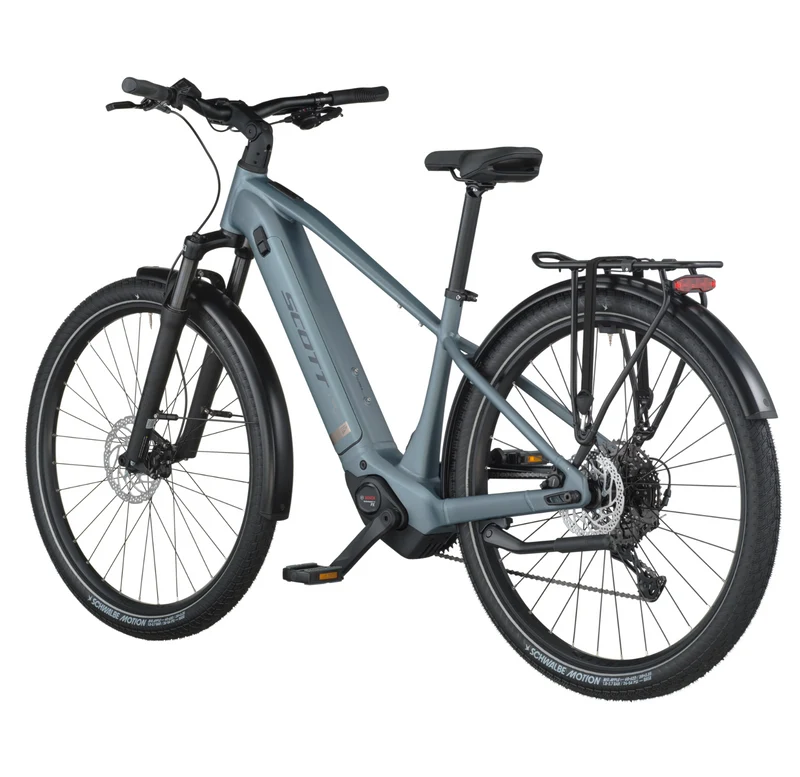

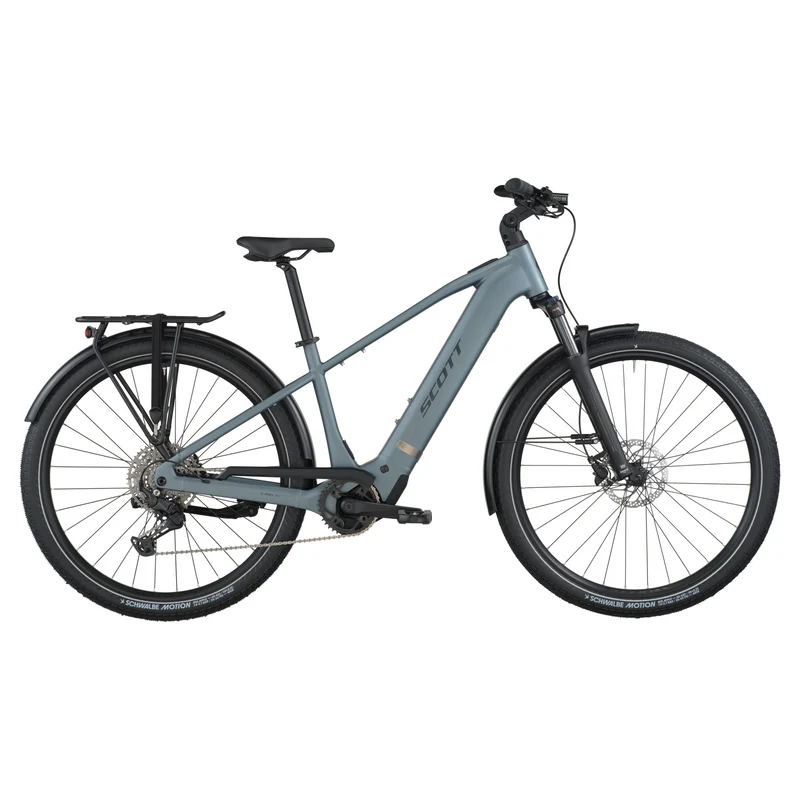

Getting around town by bike with ease is a dream on the Sub Sport 20 E-Bike. The versatile urban bike combines balanced handling and stability with the power and support of Bosch’s Performance PX motor unit and 600Wh battery. So, whether you’re commuting, running errands, or enjoying a day of care-free riding around town, the Sub Sport 20 eagerly does it all.
When you get going, Bosch’s motor opens up smoothly to deliver natural-feeling acceleration and confidence to get up to speed. And there are multiple modes you can choose from as you’re pedaling to match the support you’ll need, whether that’s extra juice to get over a hill or battery-saving control for a longer trip to the farside of town.
Sub Sport can carry up to 25kg on its rear rack (including an optional kids’ seat). It’s equipped with a front suspension fork to calm rougher sections on the route, and Shimano’s 10-speed drivetrain gives it the gears to easily manage any terrain on your map.
FrameAlloy S-XL=29", 6061 Alloy custom butted tubingSide extraction batteryUDH Interface, 12x148mm with 52mm Chainline
Travel100mm
ForkSR Suntour XCM34 LO Coil, Tapered, 15x110 bolt Axle, Lock Out, 100mm Travel
Drive UnitBosch Performance Line PX (BDU347Y)EU: 25kmh
BatteryPowerTube 600Wh
DisplayBosch Purion 200
Charger2A Charger
ShiftersShimano CUES RD-U6000GS 10 Speed
CranksetFSA CK-220 170mm
ChainguideSyncros
ChainringFSA 38T
ChainShimano LG500
CassetteShimano CS-LG40010 11-48 T
BrakesShimano BR-MT200 Disc
RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
HandlebarSyncros UC3.0 680mm, Rise 12mm, Backsweep 15°
H'stemSyncros UC 3.0 adjustable with front Light mount
SeatpostSyncros 3.0, 31.6mm, 350mm
SeatSyncros Capilano
HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm
Front HubShimano HBTC50015BB CL, 15x110mm
Rear HubShimano FHTC500HMBB, 148x12mm
SpokesBlack Spokes
RimsSyncros X18 Disc
Front TireSchwalbe Big Apple Performance, 60-622
Rear TireSchwalbe Big Apple Performance, 60-622
LightsFront Lezyne Hecto E65Rear Super Bright Lezyne Light
RackRacktime carrier SnapIt 2.0 25KG
PedalsMarwi SP-828
Approx weight in KG28
Approx weight in LBS61.73
Max. System Weight160kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Please note that bike specifications are subject to change without prior notice.
