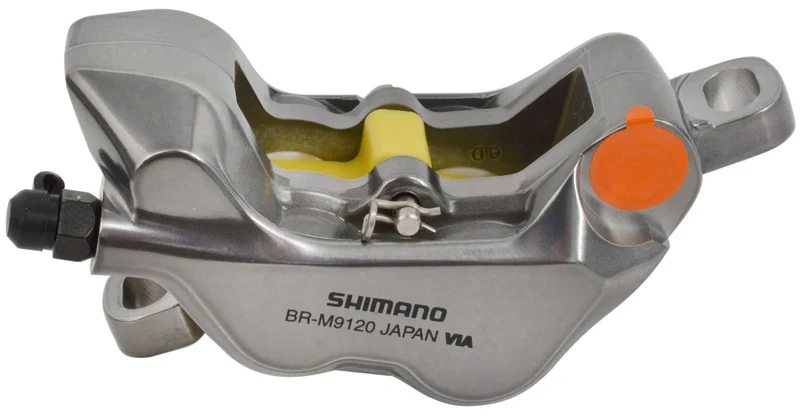

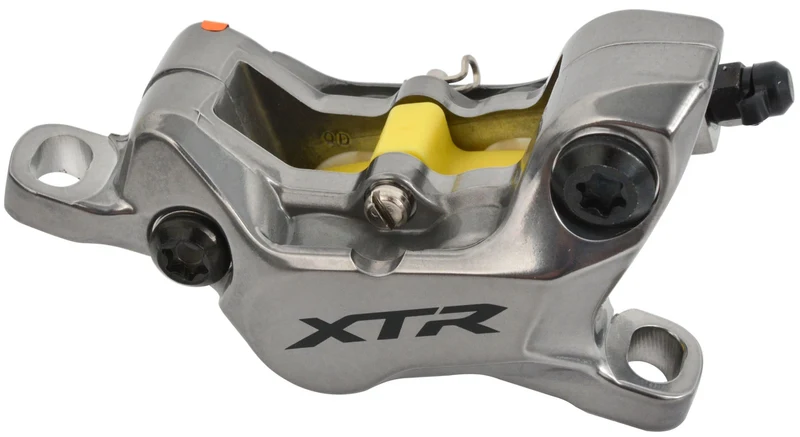

Shimano brake caliper XTR BR-M9120 4-piston post mount

Shimano brake caliper XTR BR-M9120 4-piston post mount

Stable 4-piston disc brake with super braking power: Shimano XTR brake caliper BR-M9120 with 4-piston N03A disc pads

The two-piston brake (BR-M9100) is combined with a light XC brake lever, the reach of which can of course be individually adjusted. The four-piston brake (BR-M9120) reveals its immense potential in combination with a special SERVO-WAVE brake lever (BL-M9120), the reach of which can also be adjusted without tools and which also has an adjustment option for the free travel.

Both brake calipers have a one-piece aluminum design and are combined with highly rigid brake lines, so that the new XTR brake systems score with significantly faster response and less free travel.

The brake pads and brake discs have also been revised to match the newly developed brake calipers. The four-piston brakes use brake pads with cooling fins (N03/04, resin/metal). In contrast, the two-piston brakes use pads without cooling fins (K02/04, resin/metal; optional K02/04Ti with titanium carrier plate) to ensure good deceleration with low weight.
The design of the brake discs is a further development of the successful ICE TECHNOLOGIES FREEZA design. While the 140mm and 160mm discs are particularly attractive due to the further weight reduction of 5g and 10g respectively, the 180mm and 203mm versions are characterized by a further improvement in heat dissipation of 20°C in intensive tests and also remain pleasantly light on the scales (203mm: minus 30g).

Features - Shimano XTR BR-M9120 brake caliper N03A Resin

• brake caliper for post mount
• For front or rear wheel
• Powerful 4-piston brake caliper
• Fast and easy venting through one-way bleeding
• Ice-Tech pads with cooling fins
• ceramic pistons

product features

• Application: MTB, Enduro, Trail
• Group: XTR M9100
• Model: BR-M9120
• Brake type: Disc brake
• Attachment: front wheel / rear wheel
• Brake caliper mount: Postmount
• Brake pad: N03A Resin with cooling fins
• Line connection: Banjo
• One-way venting: Yes
• Brake fluid: mineral oil
• Recommended brake levers: BL-M9120
• Recommended brake line: SM-BH90-SBM
• Recommended brake disc: RT-MT900

material

• Brake caliper: aluminum
• Brake piston: ceramic

Color

• serial color

scope of delivery

• 1 x brake caliper XTR BR-M9120
• 1 x brake pads N03A Resin with cooling fins
• 1 x brake line screw
• 2 x mounting screw (M6 x 14.6) for brake caliper

Brake line SM-BH90-SBM, O-ring (Y8SY28000) and mineral oil not included!
