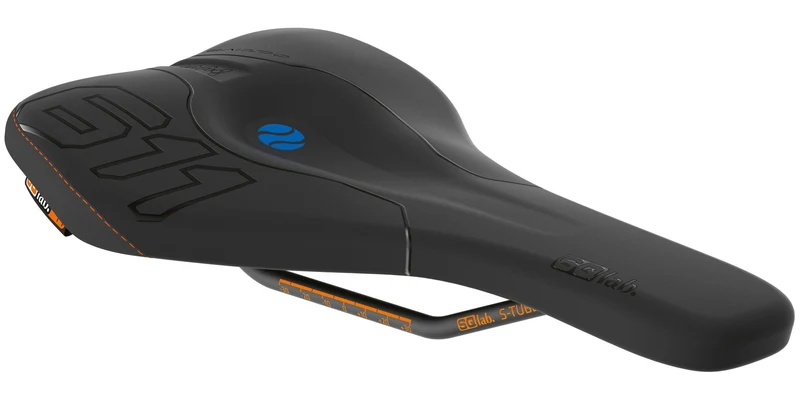

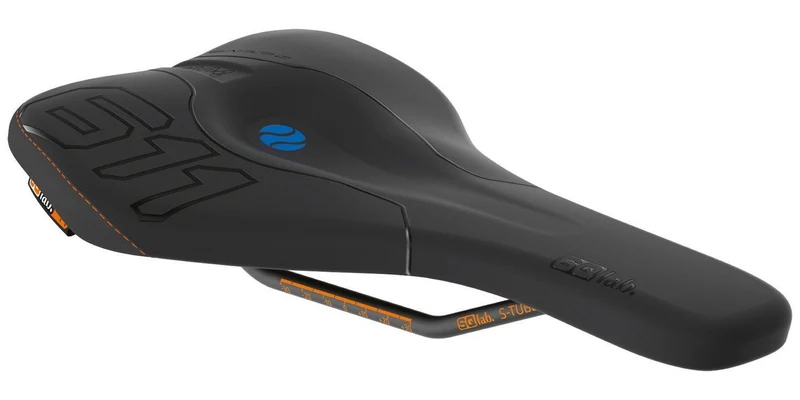

SQ-lab saddle 611 Ergowave active S-Tube

SQ-lab saddle 611 Ergowave active S-Tube

The 611 ERGOWAVE active was precisely tailored to off-road needs and perfected to meet the requirements of all-mountain and enduro. Thanks to its wave-like shape and the raised rear, the saddle ensures perfect support to the rear and optimal pressure distribution into the deep structures of the body, which significantly improves the power transmission to the pedal. The deeper nose, in combination with the depression in the middle, creates more space and freedom for the perineal area. For even better pressure relief, especially on longer climbs in the terrain, the saddle nose of the 611 was approx. 4 mm wider than the 612, but was designed to be just as flat and with the largest possible contact surface. The padding material was specially adapted to the requirements of the MTB and has more cushioning on rough terrain than the 612 ERGOWAVE models. High-quality Kevlar cover protects the particularly stressed areas on the saddle. Thanks to the SQlab active saddle technology, the saddle follows the pedaling movement, comfort increases, the intervertebral discs are mobilized and the pressure on the sit bones is minimized.

Technical data

Area of ​​application: MTB Tech & Trail
Length: 280mm
Weight (without elastomer): 220 g
Hardness in SQ-Shore: 55
Relief of the perineal area: 65%

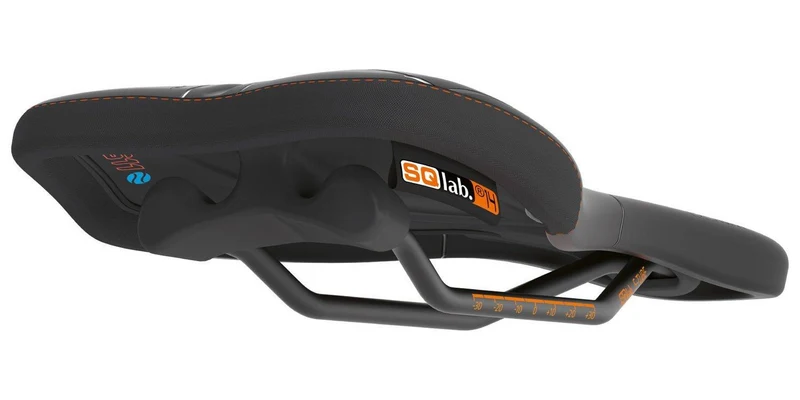

Material struts: S-Tube
Cover material: C84 Kevlar
Material upholstery: Superlight Foam

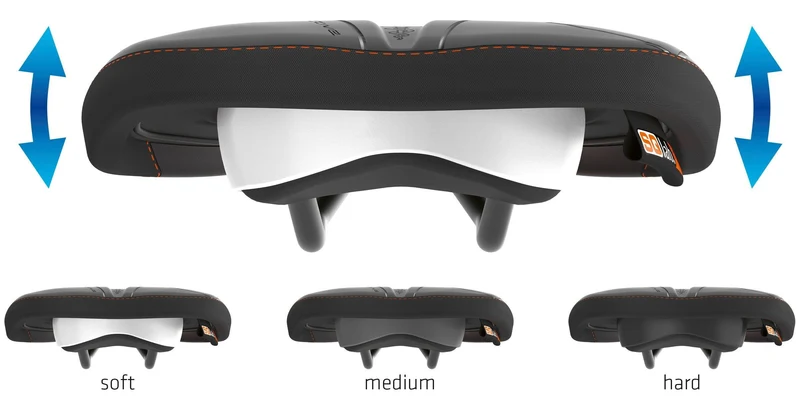

Active technology: Elastomers approx. 26 g/piece (replaceable) soft, medium, hard
Max. load: 100 kg
Width: 12cm, 13cm, 14cm, 15cm
