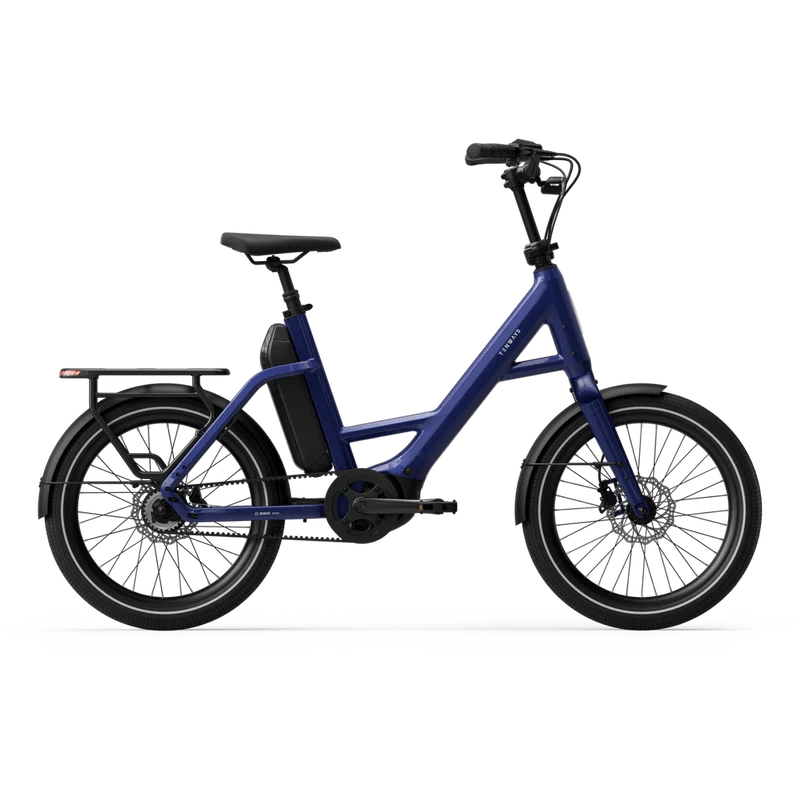

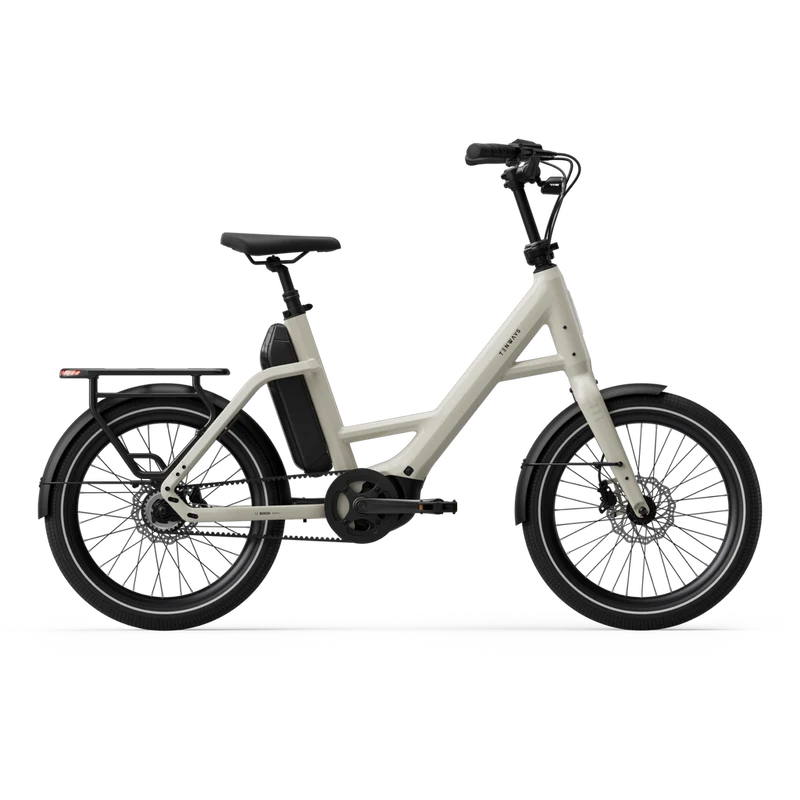

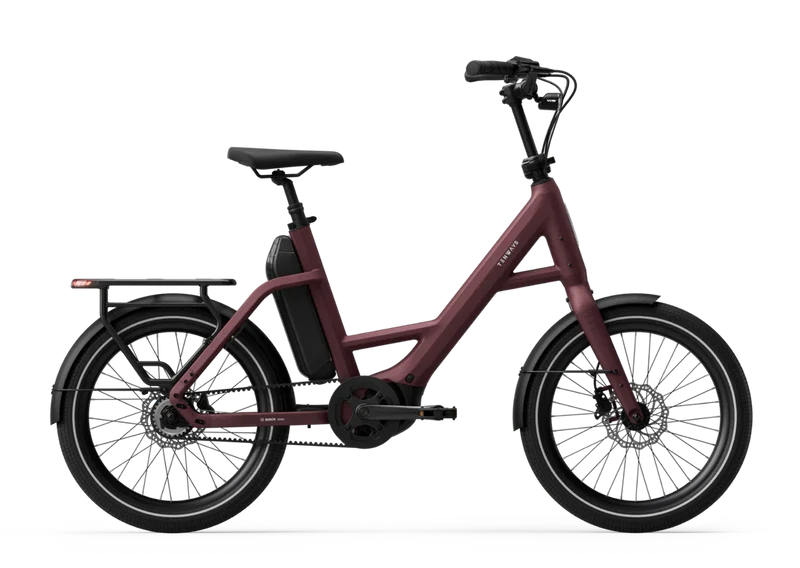

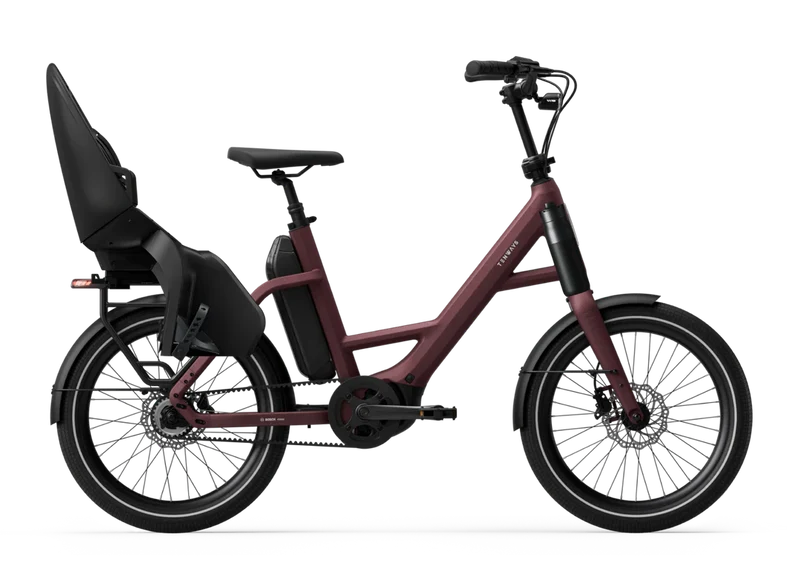

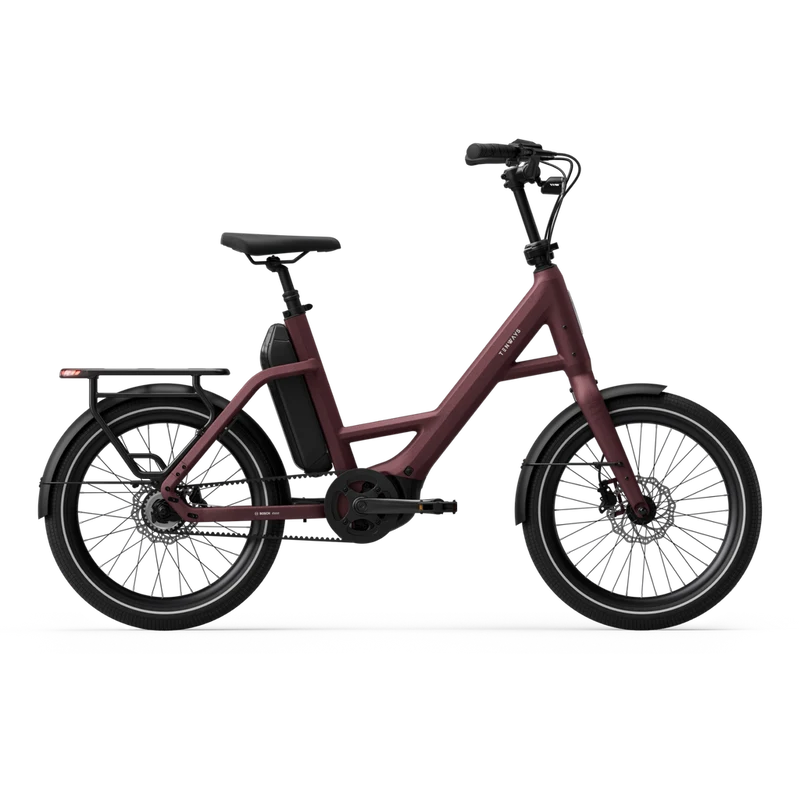

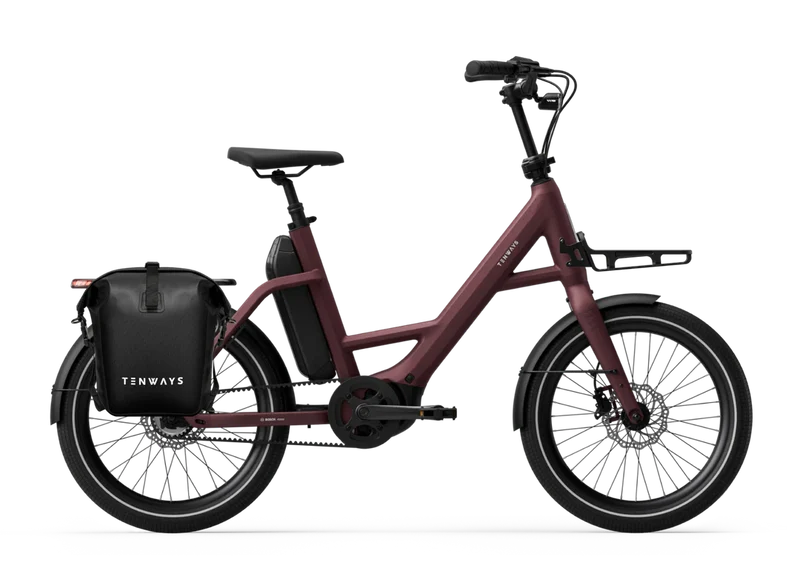

TENWAYS AGO COMPACT PERFORMANCE

Premium by design. Strong for heavy loads. Easy to care for. The AGO Compact Performance is your reliable companion for everyday adventures

Electronics:

• Motor

  Bosch Performance Line Mid-drive Motor (250 W Power, 75 Nm Torque)

• Sensor

  Bosch

• Display

  Bosch Purion 200

• Battery

  Bosch PowerPack 545 Frame (36 V, 545 Wh)

• Controller

  Bosch

  *The AGO Compact Performance is compatible with the Bosch eBike Flow app.

Performance:

• Top Speed

  25 km/h*

  *The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.

• Range

  Up to 120 km*

  *Actual performance will vary depending on temperature, road conditions, rider's weight, etc.

• Climbing Ability

  Suitable for climbing slopes *

  *The actual performance would depend on the rider's physical strength.



  Components:

  • Frame

    6061 Aluminium Frame

  • Crankset

    Gates CDX 46T Belt Chainring

  • Wheels

    20" Aluminium Rims

  • Drivetrain

    SHIMANO NEXUS 5-speed
    Gates CDX Carbon Belt

  • Brake

    SHIMANO Hydraulic Disc Brakes

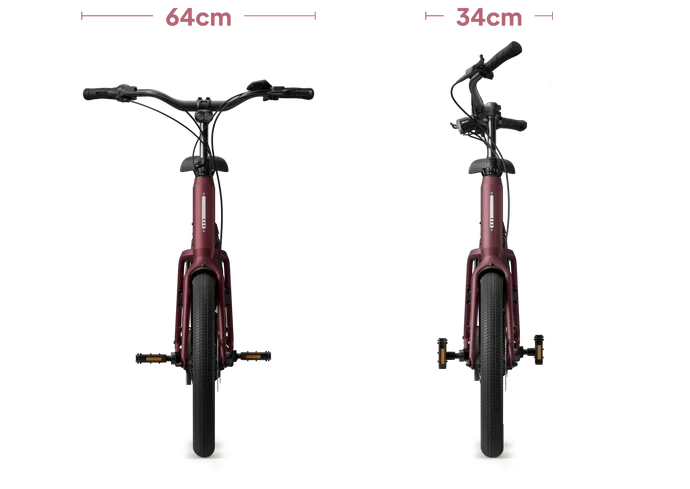

  • Stem

    By.schulz Speedlifter Twist Stem

  • Tires

    CTC Puncture-proof 20'' Tires

  • Front Fork

    TENWAYS Alloy Rigid Fork

  • Saddle

    Selle Royal

  • Weight*

    Net weight: 23.45 kg (excluding all accessories)
    Full weight: 26 kg (including all accessories)
    MIK HD Rear Carrier, Max. Load: 27 kg
    Permissible Max. Weight: 145 kg

    • All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.

    SIZE (mm)	One Size
    A Effective top tube	/
    B Seat tube length	470
    C Head tube	250
    D Steering angle	71.5
    E Seat tube angle	71.2
    F Chainstay	444.4
    G Wheelbase	1073.8
    H Standover	475.6

  *Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.
