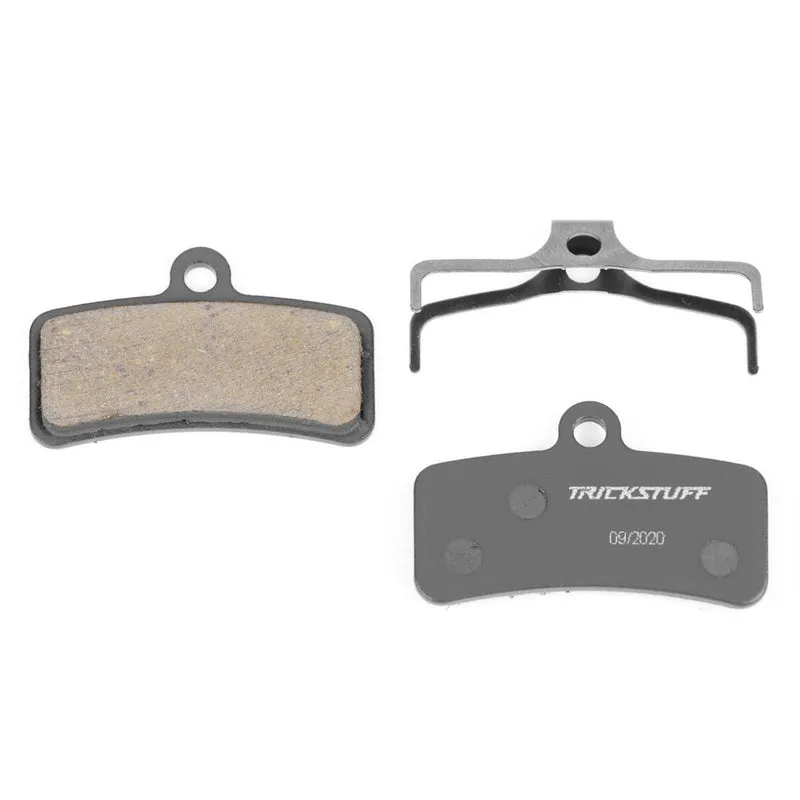

Trickstuff brake pads 260 Standard (Shimano)

Trickstuff brake pads 260 Standard

The Trickstuff brake pads are made from organic materials and bonded with synthetic resin. Organic pads have the great advantage of being a thermal insulator, which protects the seals in the brake calliper from overheating. To improve braking properties and reduce abrasion, the pad contains small amounts of metal particles. Despite this, the pads are mostly organic; you could also say they are semi-metallic. This mixture results in optimal dry and wet braking values ​​and also keeps disc wear to a minimum.

Thanks to the 2 mm steel carrier plate, minimal heat transfer to the brake calliper occurs, while at the same time the proportion of friction material increases to return to the standard total thickness of approx. 3.9 - 4.0 mm. This means a longer service life, excellent fading stability, even higher dry and wet friction values ​​with extremely low wear.

The standard pad mixtures have the highest durability among the organic Trickstuff brake pads. Compared to the Trickstuff Power pads, their braking power and temperature resistance are slightly lower.

Characteristics:

very high braking power

very low wear

very good dosing

Test winner: Bike 4/2017 | Mountainbike 9/2017

Technical data:

Material carrier plate: steel

Friction material: organic (resin)

Brake compatibility:

Shimano HD-M535, HD-M735, HD-M745, HD-M750, HD-R310, Orion 4P, TRP C2.3, DH Evo, DHR Evo, DHR Evo Gold, Quadiem, Quadiem SL, Slate Evo, Slate T4, Trail Evo

Color of carrier plate: gray-black

Weight according to the manufacturer: 22.7g

Weight weighed by myself: 24.7g
