Fornitore: Trickstuff

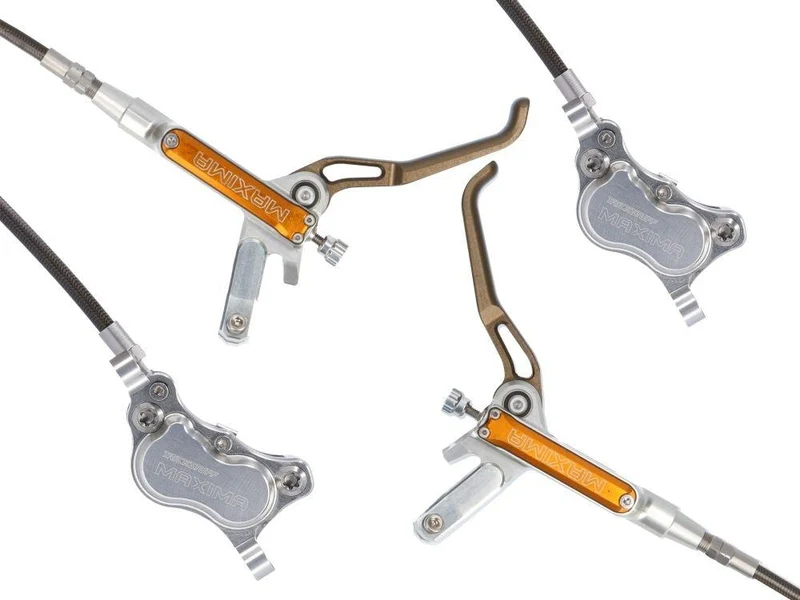

Trickstuff disc brake Maxima | Goodridge Steel

1097,50 €729,27 €In offerta
Quantità

Descrizione

"

TRICKSTUFF disc brake Maxima | Goodridge steel flex cable with carbon effect | set

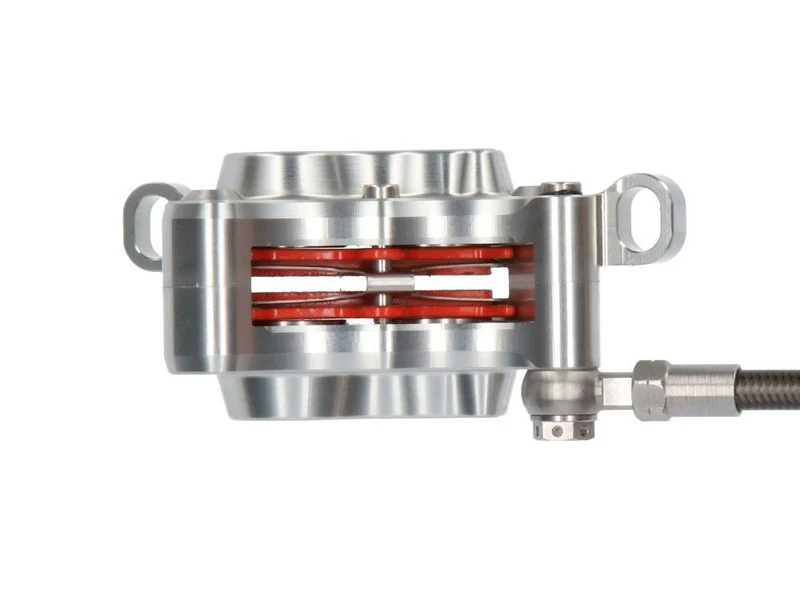

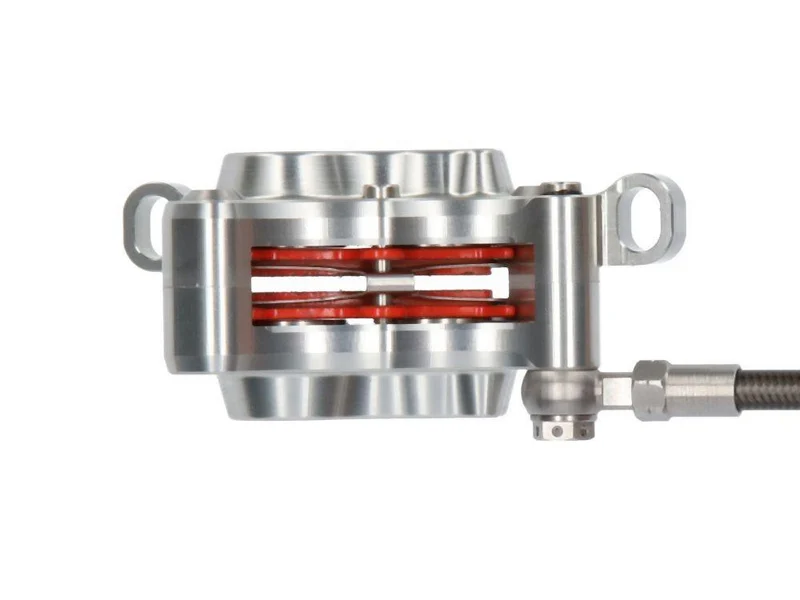

With the Maxima, Trickstuff successfully continues the series of top brakes. While the Direttissima already shone with brute braking power at the lowest possible weight, the new one goes even further. The modulation has been improved again and the manual force required when braking has been significantly reduced. The result is a brake that is beyond any doubt in terms of braking power and stability and requires little effort from the driver, even on long, hard and difficult descents. The core, the 4-piston brake caliper, has been completely redesigned. With larger pistons and the revised design, the braking power and stability have increased again compared to the Cleg 4 brake caliper on the Direttissima. In order to be able to transmit the higher braking force in a measured manner, the kinematics of the levers were trimmed for better modulation and low operating forces. The brake levers have been provided with an enlarged reserve reservoir, have 4 ball bearings and are equipped with Teflon seals, which makes operation even easier. The brake lines were also adapted to the higher braking power. The Maxima is equipped with pressure-resistant steel braided cables and Goodridge connections, which are also particularly light at 17 grams per meter of cable length. In addition to the lines, the hollow milled brake pistons and cutouts on the brake levers also reduce the weight to just 311 grams (filled front brake with 90 cm brake line without disc, adapter).

Technical data

  • Areas of use: Enduro, downhill, e-bike
  • Brake caliper material: CNC milled aluminum 7075T6
  • Brake lever material: CNC milled aluminum 7075T6
  • Material fastening screws: steel
  • Pistons: 4, with automatic lining adjustment
  • Brake mount: Postmount 6""
  • Brake disc: optional (140 mm | 160 mm | 180 mm | 203 mm | 223 mm)
  • Brake medium: mineral oil (BIONOL by DANICO)
  • Brake line: Goodridge steel braided line with carbon effect (6 mm) with plastic coating
  • Reach width adjustment: yes / via adjustment wheel
  • Pressure point adjustment: no
  • Mounting: one-sided, left and right
  • Line length: VR 900 mm and HR 1700 mm
  • Weight according to the manufacturer: from 290g
  • "
