LUPINE E-Bike Headlight SL RF Nano Bluetooth | StVZO

It's here, Lupine's smallest e-bike lamp with StVZO approval for road traffic. Glare-free 600 lumen low beam, switchable high beam and Lupine's proven lens technology make it the first choice for your bike tours in the dark season. Its automatic daytime running light increases your safety on the road.

Simple. Guaranteed.

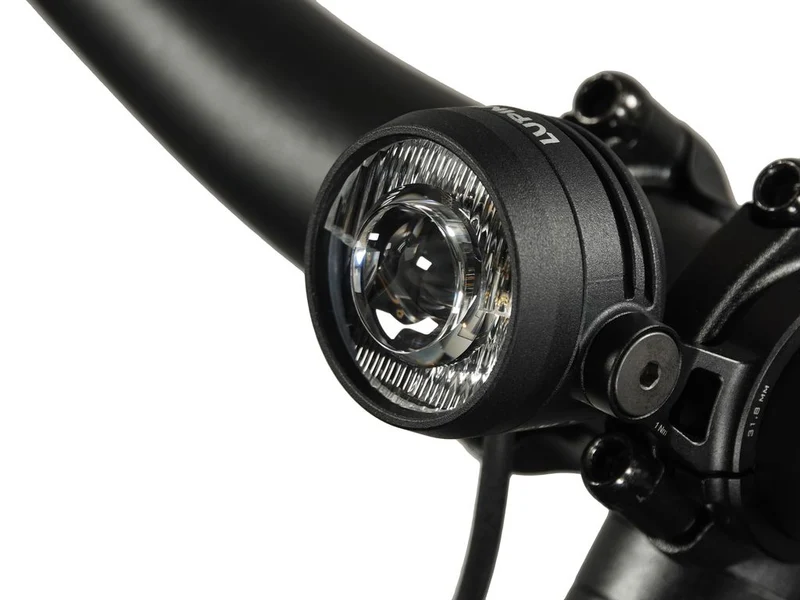

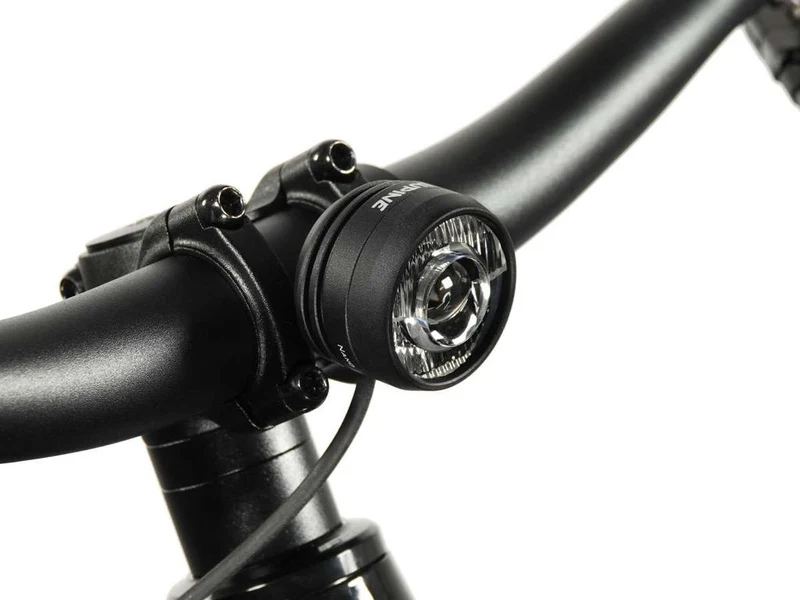

Mounting the light in front of the stem is extremely easy thanks to the sturdy one-sided aluminum holder. There it sits ideally in the middle. Once installed, it receives its power directly from the drive. In addition, the SL RF Nano has genuine approval in accordance with the StVZO for pedelecs up to 25 km/h.

As small and robust as possible

The SL F Nano is incomparable. Its unique appearance is not only due to the striking daytime running light, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects it against impacts, dust and water and meets the IP68 standard with flying colors.

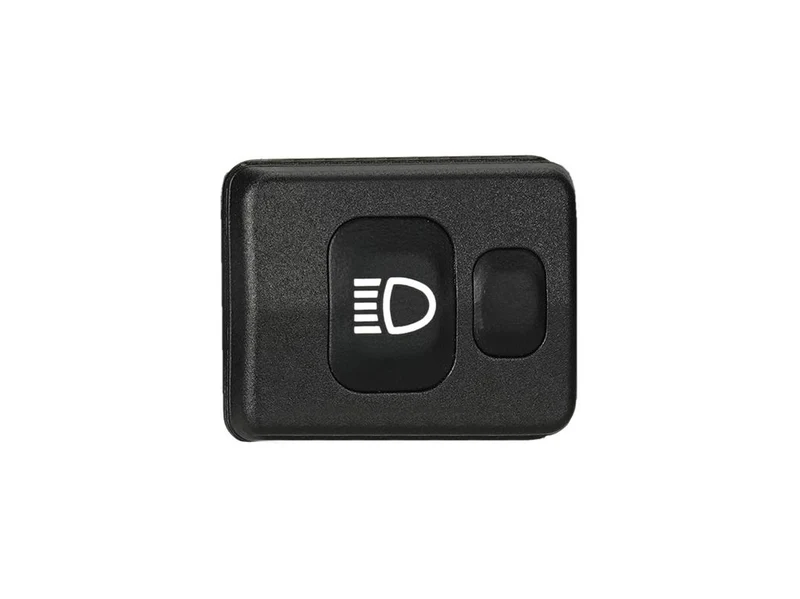

You can switch the SL RF Nano on and off using the remote control or the e-bike display.

sensor-controlled daytime running lights

The stereo sensor scans your ambient light and switches your SL RF from daytime running lights to low beam in good time. The daytime running lights on the StVZO models are continuously supported by the main headlight.

high beam

It's not just a stronger low beam. When you switch to high beam, the entire light pattern changes. This means that the area above the glare limit is clearly visible. Even faster rides and detours onto the trail are no longer a problem. For safety and greater comfort, the lights can be switched back and forth using a Bluetooth remote control.

Please use your high beam wisely and dim your headlights when there is oncoming traffic.

Technical data:

Material: Aluminum 6061-T6

Dimensions (ØxL): 41 x 30 mm

Supply voltage: 6 V - 12 V DC (automatic detection)

Consumption: 2 W daytime running light, 8 W low beam, 14 W high beam

Power supply: E-bike drive

E-bike compatibility: 38 cm cable with connector; 80 cm connection cable for Shimano drives included; optionally available for other systems

Light source: 2x Osram Compact PL LED

Luminous intensity: 600 lumens low beam, 900 lumens high beam

Optics: Fresnel freeform lens

Functions: Daytime running lights, low beam, high beam with remote control

Communication:

Approval StVZO: K-license plate, for e-bikes up to 25 km/h

Mount: SL Nano handlebar mount for 31.8 mm or 35.0 mm handlebar diameter

Color: matt black anodized

Weight according to manufacturer: 52g (lamp head only)
